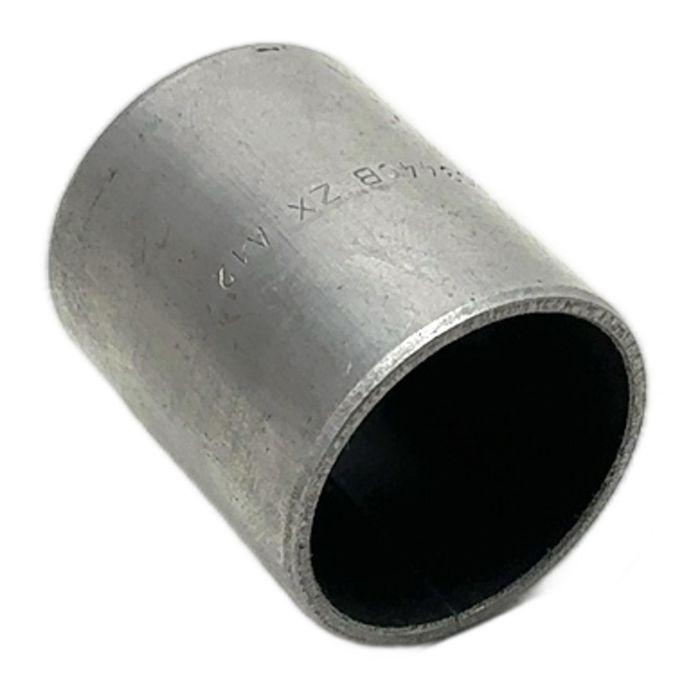

SKF PCM 303440 B Plain Bearing Bush

Description

The SKF PCM 303440 B is a maintenance-free, wrapped composite plain bearing bush designed for superior performance. It is constructed with a steel backing for high load capacity, a sintered bronze layer for optimal heat transfer, and a PTFE-based sliding layer for extremely low friction and wear. This bearing is ideal for applications requiring maintenance-free operation under dry running conditions.

Specifications

• Manufacturer: SKF
• Type: PCM 303440 B
• Inner Diameter (d): 30 mm
• Outer Diameter (D): 34 mm
• Length (B): 40 mm
• Material: Composite (Steel, Sintered Bronze, PTFE)

Label Info

• SKF PCM303440B
• ZX A12 (Batch code)

Application

This type of bearing is commonly used in hydraulic pumps and motors, automotive suspension systems, textile machinery, agricultural equipment, and other industrial applications where rotational or oscillating movements occur.

Country of Origin

SKF is a global company with manufacturing facilities worldwide. The specific country of origin is not marked on this component.

CO2 Impact

Reusing industrial components like this bearing is a crucial step in sustainable manufacturing. By choosing this refurbished part, you contribute to a circular economy, saving approximately 0.2 kg of CO2 compared to producing a new one.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What are the main advantages of a PTFE composite bearing?

The primary advantages are self-lubrication (no need for grease or oil), very low friction, high wear resistance, and a wide operating temperature range. They are also compact and lightweight.

Is this bearing suitable for high-temperature applications?

Yes, SKF PCM bearings have a continuous operating temperature range from -200 to +280 deg C (-390 to +535 deg F), making them suitable for a wide variety of demanding environments.

Can this bearing be used in a lubricated system?

While designed for dry operation, its performance can be enhanced in lubricated or grease-lubricated applications. The presence of a lubricant can further reduce friction and extend service life, especially in contaminated environments.
