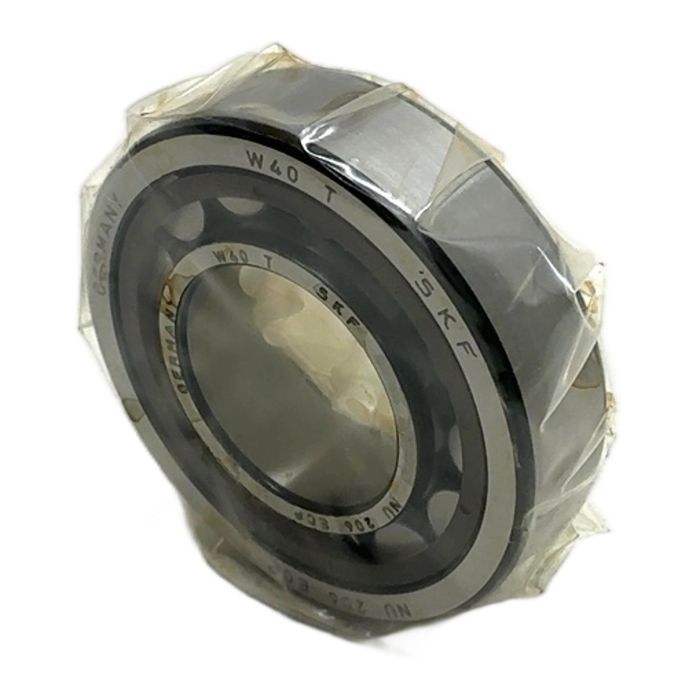

SKF Cylindrical Roller Bearing NU 206 ECP

Description

The SKF NU 206 ECP is a high-performance single-row cylindrical roller bearing, designed for applications that require high radial load carrying capacity and high-speed capability. The 'ECP' suffix signifies an optimized internal design for increased load capacity and a glass fibre reinforced polyamide cage for superior durability. This bearing is a standard component in a wide range of industrial machinery, including gearboxes, pumps, and electric motors.

Specifications

• Manufacturer: SKF
• Type: NU 206 ECP
• Category: Single Row Cylindrical Roller Bearing
• Inner Diameter (d): 30 mm
• Outer Diameter (D): 62 mm
• Width (B): 16 mm
• Cage Material: Polyamide (PA66)
• Design: NU design (two integral flanges on the outer ring, no flanges on the inner ring)
• Basic Dynamic Load Rating: 32.5 kN
• Basic Static Load Rating: 29 kN

Label Info

• Brand: SKF
• Model: NU 206 ECP
• Country of Origin: Germany
• EAN: 7316577030474

Application

Ideal for use in industrial gearboxes, automotive transmissions, agricultural machinery, pumps, compressors, and electric motors where high radial loads and high speeds are present.

Country of Origin

Made in Germany.

CO2 Impact

By purchasing this reused bearing, you are saving approximately 0.5 kg of CO2 emissions compared to manufacturing a new one. This is equivalent to the emissions from driving a standard passenger car for 2.5 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The 'ECP' designation indicates an SKF Explorer class bearing with an optimized internal design ('E') and a glass fibre reinforced polyamide 6,6 cage, roller centred ('P'). This provides higher load ratings, longer service life, and better performance under demanding conditions.

No, bearings of the NU design, like this one, can accommodate axial displacement of the shaft relative to the housing in both directions. They are designed to handle high radial loads but cannot take any axial load.

The bearing should be stored horizontally in its original, unopened packaging in a dry, clean, and room-temperature environment (ideally between 15 deg C and 25 deg C) away from vibrations and direct sunlight to preserve the protective coating and prevent moisture ingress.
