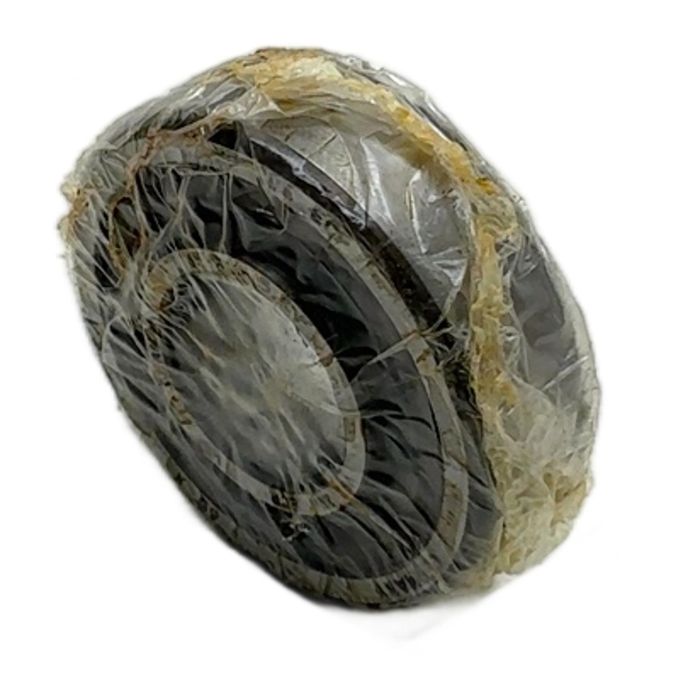

SKF Cylindrical Roller Bearing 20x47x14mm NU 204 ECP

Description

The SKF NU 204 ECP is a single-row cylindrical roller bearing designed for high performance in demanding industrial applications. It accommodates high radial loads and is suitable for high-speed operation. The 'NU' design means the inner ring has two flanges while the outer ring is flangeless, allowing for axial displacement of the shaft relative to the housing. This item is new old stock (NOS) with original, albeit worn, packaging.

Specifications

• Manufacturer: SKF
• Type: NU 204 ECP
• Design: Single row cylindrical roller bearing
• Bore Diameter: 20 mm
• Outside Diameter: 47 mm
• Width: 14 mm
• Cage: Glass fibre reinforced polyamide (PA66)
• Seals: None (Open design)

Label Info

• Brand: SKF
• Model: NU 204 ECP
• Country of Origin: Germany

Application

This bearing is commonly used in industrial gearboxes, automotive transmissions, electric motors, pumps, and various types of machinery where high radial loads are present.

Country of Origin

Made in Germany.

CO2 Impact

By purchasing this reused bearing, you are contributing to a circular economy and avoiding the CO2 emissions of new production, estimated at 0.22 kg. This saving is enough to charge a smartphone more than 26 times.

Availability

This is a New Old Stock (NOS) item. The product is unused, but the original packaging may show signs of wear. Limited quantity available. Order now from PLC2Day for expert support and fast delivery.

FAQ

The 'ECP' suffix indicates specific design features. 'E' stands for an optimized internal design for increased load carrying capacity. 'C' represents an optimized roller end/flange contact. 'P' signifies a glass fibre reinforced PA66 (polyamide) cage, which is lightweight and suitable for high speeds.

No, NU design cylindrical roller bearings like the NU 204 ECP are designed to accommodate high radial loads only. They cannot take any axial load. For combined loads, you would need a different type of bearing, such as an angular contact ball bearing.

The appropriate lubrication depends on the operating conditions (speed, temperature, load). This bearing can be lubricated with either grease or oil. For high-speed applications, oil lubrication is often preferred. Always refer to the machine manufacturer's manual or consult a lubrication expert for the specific application.
