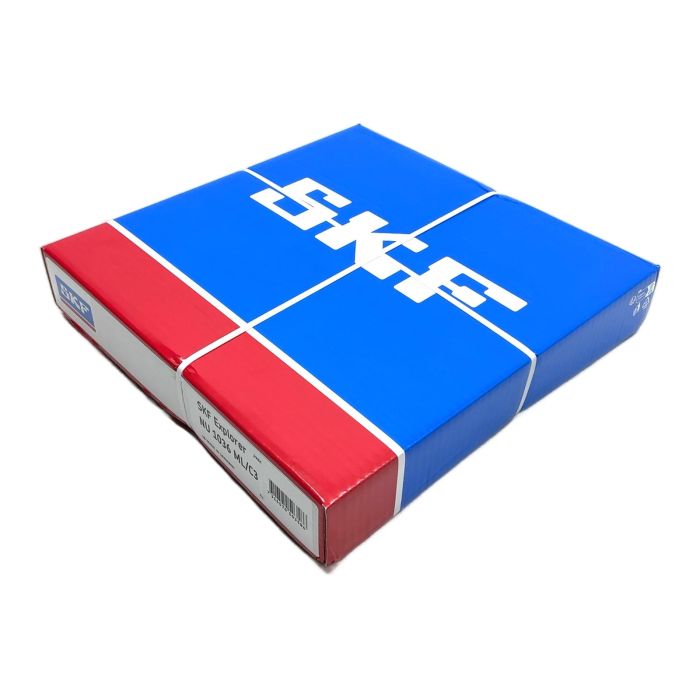

SKF Cylindrical Roller Bearing NU 1036 ML/C3

Description

This is an SKF Explorer series NU 1036 ML/C3 cylindrical roller bearing, designed for superior performance and extended service life. It is engineered to handle high radial loads and operate at high speeds, making it suitable for a wide range of demanding industrial applications such as gearboxes, pumps, and electric motors. This bearing is new in its original, sealed packaging.

Specifications

• Manufacturer: SKF
• Type: NU 1036 ML/C3
• EAN: 7316570503586
• Bore Diameter: 180 mm
• Outer Diameter: 280 mm
• Width: 46 mm
• Cage Material: Machined Brass (ML)
• Internal Clearance: C3 (Greater than Normal)
• Weight: approx. 11.2 kg

Label Info

• Brand: SKF Explorer
• Model: NU 1036 ML/C3

Application

Ideal for use in industrial gearboxes, rolling mills, compressors, wind turbines, and other heavy-duty machinery where high radial loads and high speeds are present.

Country of Origin

Made in Germany.

CO2 Impact

Opting for this component helps avoid the production of a new one, saving an estimated 22.4 kg of CO2 - a significant contribution to sustainable industrial maintenance. Order now from PLC2Day for expert support and fast delivery.

Availability

This item is in stock and ready for immediate dispatch.

FAQ

What does the "ML/C3" suffix signify on the SKF NU 1036 bearing?

The "ML" indicates a machined brass cage, which offers high strength and is suitable for high speeds and demanding conditions. The "C3" denotes a radial internal clearance that is greater than normal, designed to accommodate shaft expansion at high operating temperatures.

The "NU" design means it can accommodate high radial loads. However, it can only locate the shaft axially in one direction. For axial loads in both directions, it should be combined with another bearing type, such as a deep groove ball bearing or a four-point contact ball bearing.

This bearing is typically shipped with a corrosion-preventive compound, not a lubricant for operation. Before installation, it must be properly lubricated with a high-quality grease or oil that is compatible with the application's speed, temperature, and load conditions. Refer to the SKF bearing maintenance handbook for specific lubricant recommendations.
