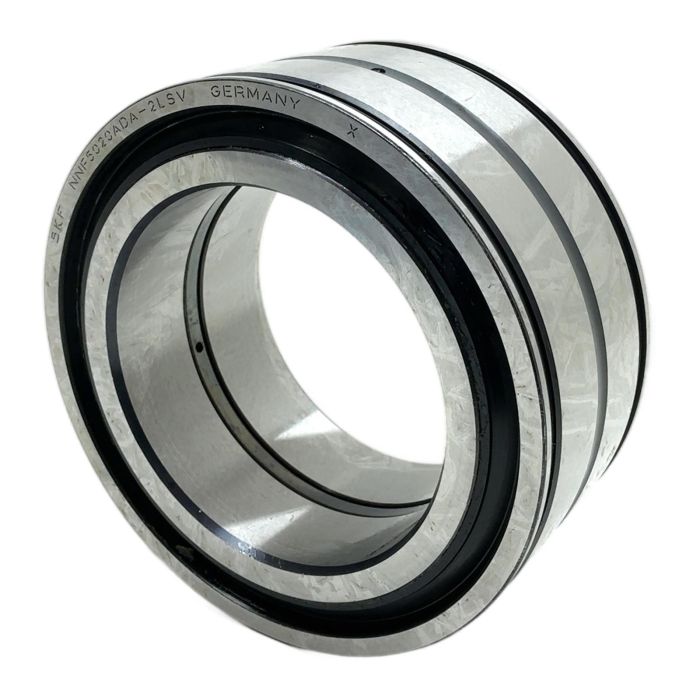

SKF Double Row Cylindrical Roller Bearing NNF 5020 ADA-2LSV

Description

The SKF NNF 5020 ADA-2LSV is a high-performance double row full complement cylindrical roller bearing, engineered in Germany for applications requiring high radial load-carrying capacity and the ability to handle axial loads in both directions. This bearing is designed as a locating bearing, ideal for use in heavy machinery such as industrial gearboxes, rolling mills, and machine tools. It features contact seals on both sides to prevent contamination ingress and retain lubrication, ensuring a long and reliable service life.

Specifications

• Manufacturer: SKF
• Type: NNF 5020 ADA-2LSV
• Bore Diameter: 100 mm
• Outer Diameter: 150 mm
• Width: 67 mm
• Sealing: NBR contact seals on both sides (2LSV)
• Number of Rows: 2
• Roller Set: Full complement
• Weight: 5.5 kg

Label Info

• SKF NNF 5020 ADA-2LSV
• EAN: 7316577041128

Application

This bearing is excellently suited for applications with very high radial loads and where axial shaft location in both directions is necessary. Common uses include crane sheaves, industrial transmissions, and other heavy-duty equipment where robustness and reliability are paramount.

Country of Origin

Made in Germany.

CO2 Impact

By purchasing this pre-owned bearing, you are saving approximately 11.0 kg of CO2, which contributes to a more sustainable industrial sector by avoiding the emissions from new production.

Availability

This item is available from stock. Order now from PLC2Day for expert support and fast delivery.

FAQ

The 'ADA' designation indicates that the bearing has a two-piece inner ring, which is held together by an internal retaining ring. This design facilitates easier mounting and dismounting. The '2LSV' suffix means it has high-performance, low-friction contact seals made of NBR (nitrile rubber) on both sides, providing excellent protection against contamination and retaining grease, combined with a full complement roller set for maximum load capacity.

Yes, NNF series bearings like this one can accommodate axial loads in both directions. They are designed to act as locating bearings, meaning they can locate a shaft axially in both directions. However, their primary strength is in handling very high radial loads.

This bearing is typically supplied with a high-quality grease. The '2LSV' seals are designed to retain this initial grease fill for a long service life under normal operating conditions. For relubrication or specific application requirements, it is essential to consult the SKF technical datasheet to ensure compatibility and use a suitable roller bearing grease.
