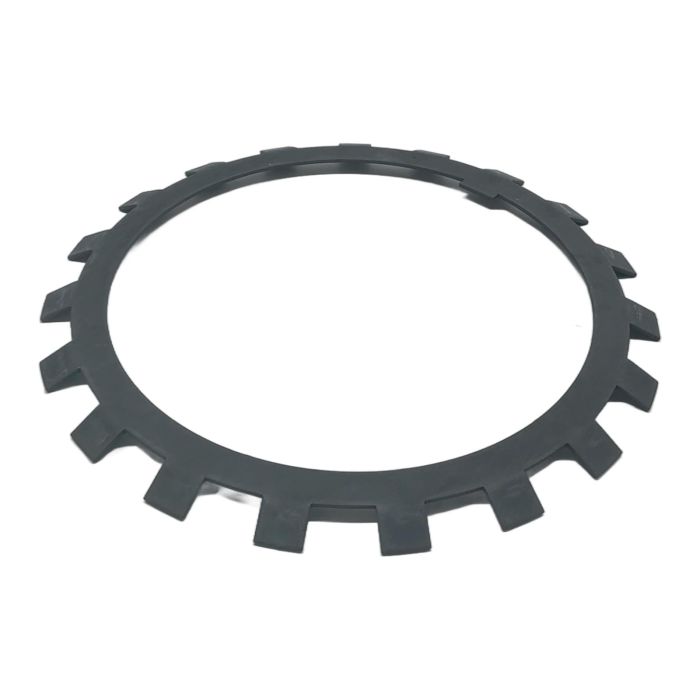

DIN 5406 MB 20 Multi-Tooth Lock Washer

Description

This is a high-quality lock washer, also known as a tab washer, conforming to the DIN 5406 standard. The MB 20 model is specifically designed for use with KM 20 locknuts (DIN 981) on 100mm diameter shafts. Its primary function is to secure bearings and other components on a shaft by preventing the locknut from loosening under vibration or dynamic loads. One of the external tabs is bent into a corresponding slot on the locknut to create a positive mechanical lock.

Specifications

• Standard: DIN 5406
• Type: MB 20
• Compatible Locknut: KM 20
• Shaft Diameter: 100 mm
• Material: Steel
• Number of Tabs: 19

Label Info

• No label information available. This is a generic standard part.

Application

These washers are essential in a wide range of mechanical applications, including gearboxes, electric motors, pumps, and conveyor systems, where reliable securing of bearings on shafts is critical for operational safety and longevity.

Country of Origin

Country of origin is not specified on the product or packaging.

CO2 Impact

Choosing this surplus part over a new one avoids approximately 0.14 kg of CO2 emissions, contributing to a more sustainable industrial practice.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

First, slide the washer onto the shaft. Then, tighten the corresponding locknut (e.g., KM 20) to the required torque. Find a washer tab that aligns with one of the slots on the locknut's outer diameter and carefully bend that tab into the slot to secure the nut in place.

It is generally not recommended to reuse tab washers. The metal tab is bent during installation, and bending it back and forth can cause metal fatigue, potentially leading to failure. For critical applications, always use a new washer.

Standard DIN 5406 lock washers like the MB 20 are typically manufactured from simple steel, often with a phosphated or oiled finish for corrosion resistance. For more demanding environments, stainless steel versions may be available.
