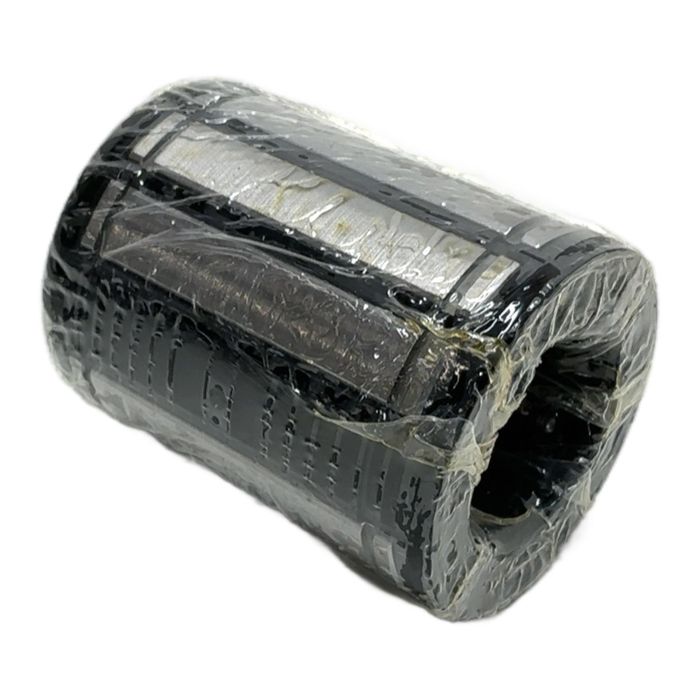

SKF LBCR 40-2LS Linear Ball Bearing for Precision Applications

Description

The SKF LBCR 40-2LS is a high-performance linear ball bearing designed for use with 40 mm shafts. As a part of SKF's robust linear motion range, this bearing provides smooth, precise, and low-friction guidance. The '-2LS' designation indicates that it is equipped with highly effective double-lip seals on both sides, offering excellent protection against dust and contaminants while retaining lubrication for extended service intervals.

Specifications

• Manufacturer: SKF
• Type: LBCR 40-2LS
• Product Type: Linear Ball Bearing
• Bore Diameter: 40 mm
• Outer Diameter: 62 mm
• Length: 80 mm
• Seals: Double Lip Seals (2LS)

Label Info

• Brand: SKF
• Model: LBCR 40-2LS
• Made in: Germany

Application

Ideal for a wide range of industrial automation and machinery applications including pick-and-place systems, CNC machinery, measurement equipment, and conveyor systems where precise linear movement is critical.

Country of Origin

This product is made in Germany.

CO2 Impact

Choosing this new-old-stock bearing over a new one prevents the emission of approximately 1.0 kg of CO2, which is associated with the manufacturing of new steel components.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What does the "2LS" suffix mean in the SKF LBCR 40-2LS designation?

Answer: The "2LS" suffix indicates that the bearing is fitted with integral double-lip seals on both sides. These seals are highly effective at preventing contaminants from entering the bearing and retaining the internal grease lubrication.

Is this LBCR 40-2LS bearing suitable for use with unhardened shafts?

Answer: For optimal performance and service life, linear ball bearings should always be used with hardened and ground shafts (typically to HRC 60-64). Using them on soft, unhardened shafts will lead to rapid wear of the shaft and premature failure of the assembly.

What type of lubrication is recommended for this bearing?

Answer: The SKF LBCR 40-2LS comes pre-lubricated with a high-quality grease suitable for most general applications. If relubrication is necessary, a lithium-based grease like SKF LGMT 2 or LGMT 3 is typically recommended.
