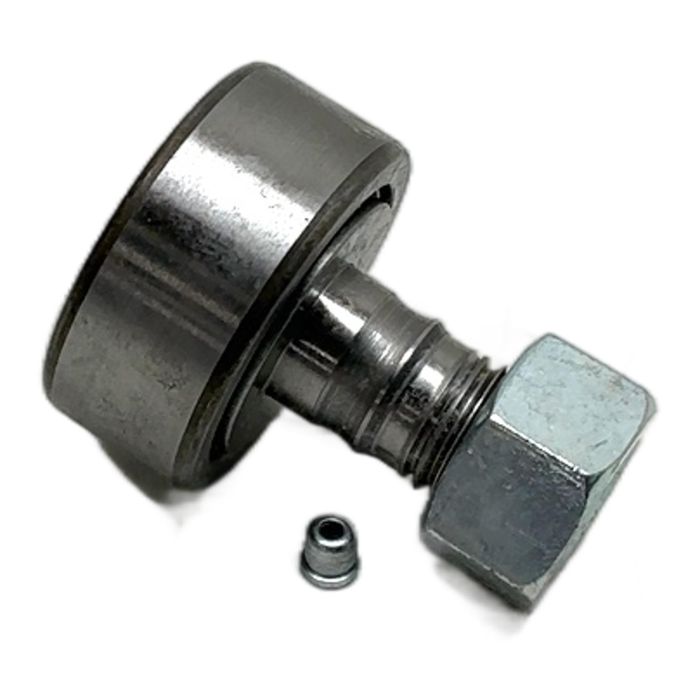

SKF KRV 32 PPA Stud Type Track Roller

Description

The SKF KRV 32 PPA is a high-performance stud-type track roller, commonly known as a cam follower. It is designed for use in a wide range of industrial applications including cam drives, conveyor systems, and material handling equipment. This bearing is built to handle high radial loads and is supplied ready-to-mount, simplifying installation and maintenance procedures.

Specifications

• Manufacturer: SKF
• Model: KRV 32 PPA
• Outer Diameter: 32 mm
• Stud Diameter: 12 mm
• Overall Length: 40.2 mm
• Thread: M12x1.5
• Sealing: PPA design with lip seals on both sides for excellent protection against contaminants.
• Outer Ring Profile: Crowned, to accommodate misalignment and reduce edge stresses.

Label Info

• Brand: SKF
• Part Number: KRV 32 PPA

Application

Ideal for applications requiring precise linear motion guidance. This includes automation lines, packaging machinery, and other systems where a roller follows a track or cam profile.

Country of Origin

Made in Germany.

CO2 Impact

Reusing this bearing saves approximately 0.16 kg of CO2 compared to manufacturing a new one. This is a sustainable choice for your maintenance needs.

Availability

This item is in stock and ready for immediate dispatch. The product is new/unused but comes in damaged original packaging. Order now from PLC2Day for expert support and fast delivery.

FAQ

What does the 'PPA' suffix mean for the SKF KRV 32 PPA?

The 'PPA' designation indicates that the track roller is fitted with an axial sliding ring and a lip seal made of NBR (Nitrile Butadiene Rubber) on both sides. This provides effective protection against contaminants and moisture, while retaining grease.

The SKF KRV 32 PPA features a crowned outer running surface as standard. This profile helps to reduce edge stresses if the roller runs tilted relative to the track, compensating for minor misalignments and extending bearing life.

The recommended tightening torque for the M12x1.5 hexagonal nut supplied with the KRV 32 PPA should be referenced from the official SKF technical documentation. As a general guideline for this size, it is typically in the range of 50-70 Nm, but always verify with manufacturer specifications for your specific application to prevent damage.
