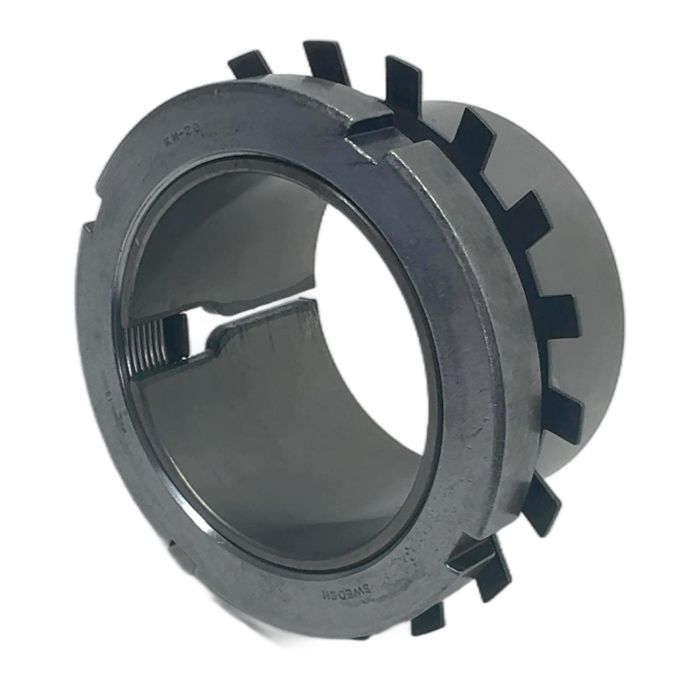

SKF H 320 Adapter Sleeve for 90mm Shaft

Description

The SKF H 320 is a high-quality adapter sleeve designed for mounting bearings with a tapered bore onto cylindrical shafts. This component simplifies the mounting process, providing a secure and precise fit. It allows for the use of standard commercial shafts, reducing overall costs and simplifying design. This sleeve is suitable for a wide range of industrial applications, ensuring reliable performance and easy dismounting for maintenance.

Specifications

• Manufacturer: SKF
• Type: Adapter Sleeve
• Model: H 320
• Shaft Diameter (d1): 90 mm
• Thread (G): M100x2
• Associated Lock Nut: KM 20
• Associated Locking Device: MB 20

Label Info

• Brand: SKF
• Model: H 320
• EAN: 7316577008602

Application

Used extensively in industrial machinery, including conveyors, fans, pumps, and gearboxes, to locate bearings with a tapered bore on plain or stepped shafts. They are easy to install and require no additional location on the shaft.

Country of Origin

Made in Sweden.

CO2 Impact

Choosing this reused component over a new one avoids the emission of approximately 3.08 kg of CO2, contributing to a more sustainable industrial operation.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What bearings can be mounted with the H 320 adapter sleeve?
The H 320 is designed for bearings with a 1:12 taper, such as spherical roller bearings (e.g., 22220 series), self-aligning ball bearings (e.g., 1220 series), and certain toroidal roller bearings. Always verify the bearing's bore taper and diameter.

Does the H 320 come with a lock nut and locking washer?
The H 320 is the sleeve itself. The complete assembly requires a corresponding KM 20 lock nut and an MB 20 locking washer. These components are typically sold separately unless specified as a complete set.

What is the correct procedure for tightening the H 320 sleeve?
The correct mounting procedure involves advancing the lock nut a specific angle or using the SKF Drive-up Method to achieve the required reduction in radial internal clearance. Over-tightening can damage the bearing and sleeve. Refer to the SKF maintenance handbook for precise instructions.
