SKF H 2310 Adapter Sleeve Assembly

Description

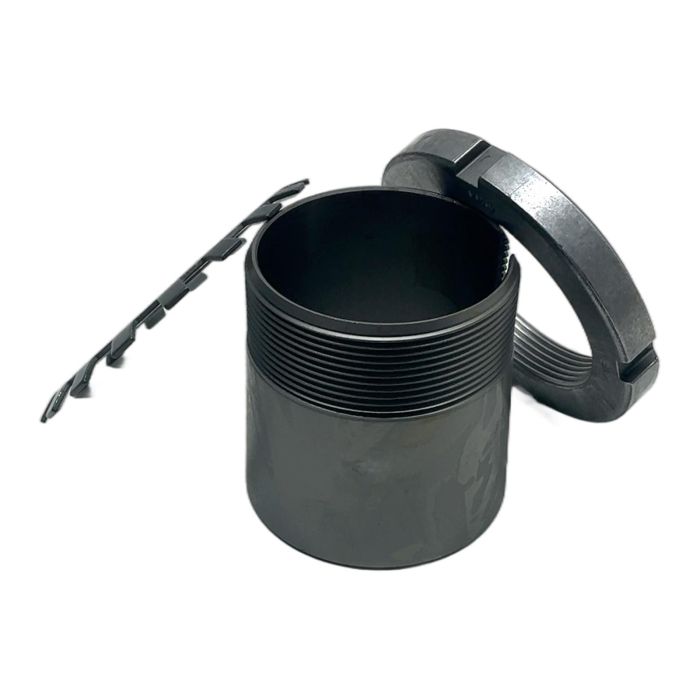

The SKF H 2310 is a complete adapter sleeve assembly designed for mounting bearings with a tapered bore onto 45 mm cylindrical shafts. This high-quality component simplifies the installation process, allowing for wider shaft tolerances while ensuring a secure and reliable fit. This assembly includes the H 2310 sleeve, a KM 10 lock nut, and an MB 10 locking washer, providing a full solution for your application.

Specifications

• Manufacturer: SKF
• Model: H 2310
• Product Type: Adapter Sleeve
• Bore Diameter (Shaft Size): 45 mm
• Thread Size (G): M50x1.5
• Included Lock Nut: KM 10
• Included Locking Washer: MB 10
• Material: Steel

Label Info

• Part Number: H 2310
• EAN: 7316577008664

Application

Adapter sleeves are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seat as they can be used on plain or stepped shafts. They are easy to install and require no additional location on the shaft.

Country of Origin

This product is manufactured in Sweden.

CO2 Impact

Opting for this pre-owned adapter sleeve prevents the emission of approximately 1.18 kg of CO2 compared to manufacturing a new one. This saving is equivalent to the carbon captured by a tree in over a month.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The bearing should be pushed up the tapered sleeve until the required reduction in radial internal clearance is achieved. The lock nut is then tightened and secured by bending one of the locking washer tabs into a slot on the nut.

Yes, if the sleeve, nut, and washer are in good condition without significant wear, burrs, or thread damage, they can be reused. However, it is often recommended to use a new locking washer for each new installation for maximum security.

The H 2310 is designed to be used with the SKF KM 10 lock nut and the SKF MB 10 locking washer. These components are typically supplied together as a set.
