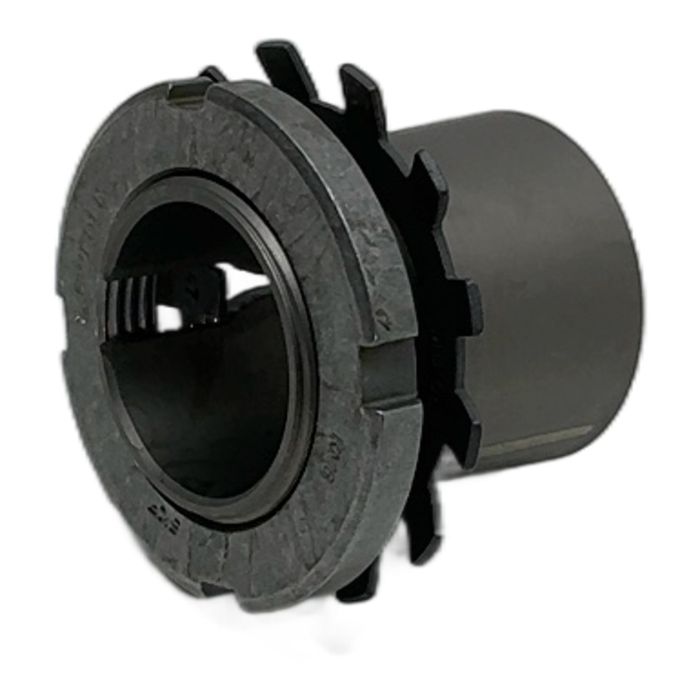

SKF H 2306 Adapter Sleeve for 25mm Shaft

Description

The SKF H 2306 is a high-quality adapter sleeve designed for mounting bearings with a tapered bore onto a 25 mm cylindrical shaft. These sleeves are the most commonly used components for locating bearings, as they can be used on plain or stepped shafts. They are easy to install and require no additional location on the shaft, simplifying the overall design and maintenance of machinery.

Specifications

• Manufacturer: SKF
• Type: Adapter Sleeve
• Model: H 2306
• Shaft Diameter (d1): 25 mm
• Width (B1): 32 mm
• Taper: 1:12
• Associated Lock Nut: KM 6
• Associated Lock Washer: MB 6
• Material: Steel

Label Info

• EAN: 7316577008626

Application

Adapter sleeves are widely used in various industrial applications, including agricultural machinery, conveyor systems, industrial fans, and power transmission assemblies where secure and precise bearing mounting is critical.

Country of Origin

Made in Sweden.

CO2 Impact

By purchasing this pre-owned component, you are contributing to a circular economy and helping to save 0.22 kg of CO2 emissions compared to manufacturing a new part. This saving is equivalent to the CO2 absorbed by a small tree in a month.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

An adapter sleeve is used to mount a bearing with a tapered bore onto a cylindrical shaft. It allows for a secure fit on smooth or stepped shafts and simplifies mounting and dismounting procedures without needing a special shoulder or locating feature on the shaft.

The H 2306 is designed for bearings with a 30 mm tapered bore. Common compatible bearing series include 1306, 2306, 22306, and self-aligning ball bearings or spherical roller bearings with the appropriate 'K' suffix in their designation.

Proper installation requires a corresponding KM 6 lock nut and an MB 6 lock washer. You will also need a hook spanner (also known as a C-spanner) of the correct size to tighten the lock nut and drive the bearing up the tapered seat of the sleeve to achieve the required internal clearance reduction.
