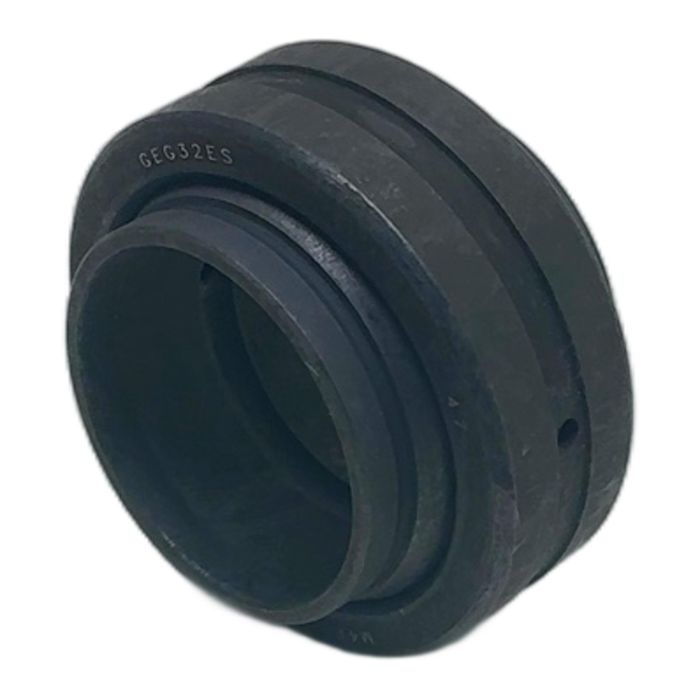

SKF Radial Spherical Plain Bearing 32mm Bore GEG 32 ES

Description

The SKF GEG 32 ES is a high-capacity radial spherical plain bearing designed for demanding industrial applications. It features a steel-on-steel sliding contact surface, making it suitable for heavy static and alternating loads. This bearing is engineered to accommodate misalignment between the shaft and housing and facilitate oscillating or tilting movements at relatively low sliding speeds. Its robust construction ensures long service life, provided it is properly lubricated.

Specifications

• Manufacturer: SKF
• Model: GEG 32 ES
• Bore Diameter (d): 32 mm
• Outside Diameter (D): 55 mm
• Width (B): 25 mm
• Sliding Material: Steel-on-Steel
• Sealing: Open (no seals)
• Lubrication: Requires maintenance, features lubrication groove and holes

Label Info

• EAN: 7316577022622

Application

This type of bearing is commonly used in applications such as hydraulic cylinder pivots, vehicle steering linkages, construction machinery joints, and other heavy-load, slow-moving pivot points where misalignment is a factor.

Country of Origin

This product is made in China.

CO2 Impact

Choosing this reused component saves an estimated 0.58 kg of CO2 compared to a new one. This is equivalent to driving a car for approximately 2.9 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the main application for a GEG type bearing?

GEG series bearings are designed for heavy static or alternating loads and can accommodate significant shaft misalignment. They are ideal for pivot points in heavy machinery like excavators, cranes, and agricultural equipment.

Yes, the 'ES' designation indicates a steel-on-steel sliding surface which requires regular relubrication with a suitable grease to prevent premature wear and ensure smooth operation.

The GEG 32 ES is an open bearing without seals. The GEG...ES-2RS version is dimensionally identical but comes with contact seals on both sides to protect against contaminants and retain grease, making it suitable for more contaminated environments.
