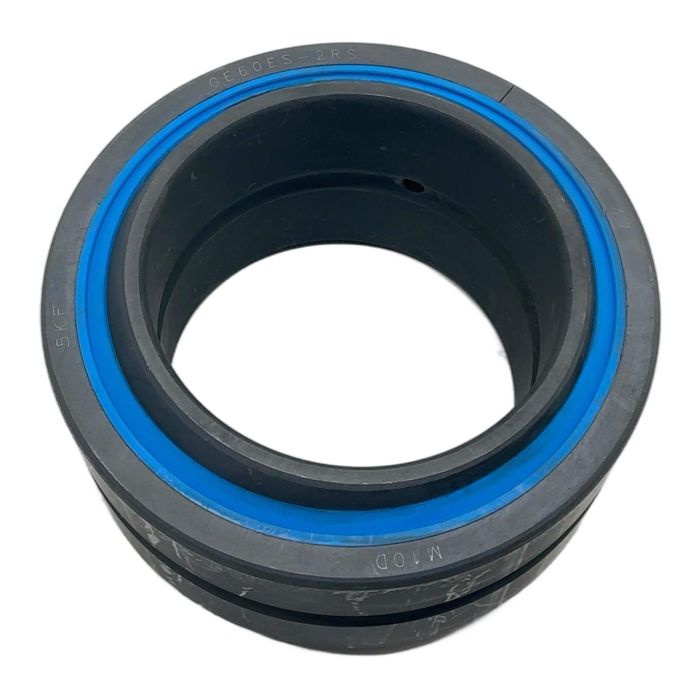

SKF GE 60 ES-2RS Radial Spherical Plain Bearing

Description

The SKF GE 60 ES-2RS is a high-performance radial spherical plain bearing designed to accommodate heavy radial loads and misalignment. It features a steel/steel sliding contact surface combination, making it suitable for applications with heavy static, alternating, or shock loads. The integrated 2RS seals on both sides provide effective protection against contaminants and retain the factory-filled lubricant, extending service life in challenging conditions.

Specifications

• Bore Diameter (d): 60 mm
• Outside Diameter (D): 90 mm
• Width (B): 44 mm
• Sealing: 2RS - Contact seals on both sides
• Sliding Contact Surface: Steel/Steel
• Relubrication Feature: Yes, via groove and holes in both rings

Label Info

• Manufacturer: SKF
• Model: GE 60 ES-2RS
• EAN: 7316576609435

Application

This bearing is commonly used in hydraulic cylinders, construction and mining equipment, agricultural machinery, and other applications where pivoting movements and potential misalignment must be accommodated under heavy loads.

Country of Origin

Made in China.

CO2 Impact

Choosing this reused component avoids the production of a new one, saving an estimated 1.9 kg of CO2. This is a sustainable choice for your maintenance needs.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The "2RS" suffix indicates that the bearing is equipped with a contact seal made of synthetic rubber (NBR) on both sides. These seals are highly effective at preventing dust, dirt, and moisture from entering the bearing and retaining the grease inside.

Yes, for steel/steel bearings, periodic relubrication is crucial to prevent metal-to-metal contact, reduce friction and wear, and dissipate heat, especially in applications with continuous oscillation or high loads. The bearing is designed with lubrication grooves and holes to facilitate this process.

Yes, spherical plain bearings like the GE 60 ES-2RS can accommodate combined radial and axial loads. The steel-on-steel design allows it to handle a small to moderate amount of axial load in both directions simultaneously with the radial load.
