SKF Square Flanged Bearing Unit 35mm bore FY 507 M

Description

The SKF FY 507 M is a high-performance square flanged ball bearing unit, designed for reliable operation in a wide variety of industrial applications. It consists of a robust cast iron housing and a high-quality insert bearing. This unit is easy to mount and comes pre-lubricated, ready for immediate installation.

Specifications

• Manufacturer: SKF
• Model: FY 507 M
• Bore Diameter: 35 mm
• Housing Material: Cast Iron
• Bearing Insert Series: YAR 207
• Sealing: Standard seals on both sides
• Relubrication Feature: Yes (grease nipple)

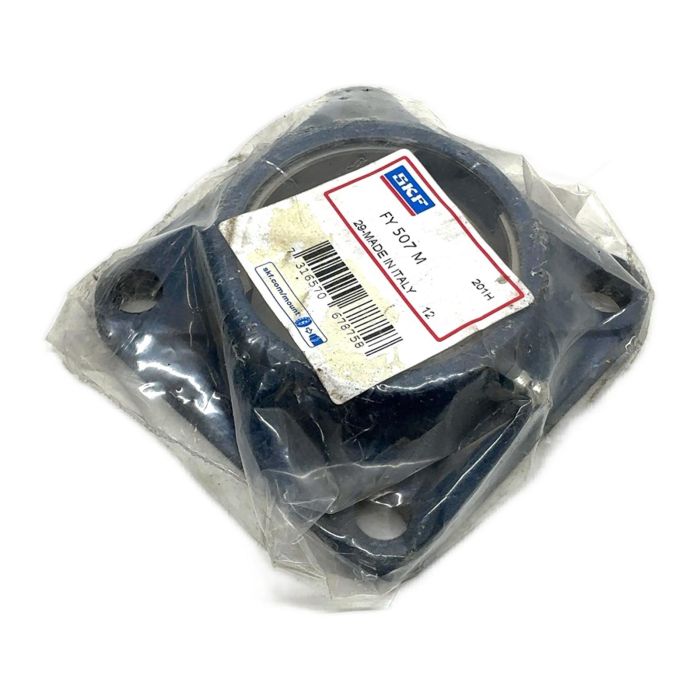

Label Info

• Brand: SKF
• Type: FY 507 M
• EAN: 7316570678758

Application

Ideal for use in agricultural machinery, conveyor systems, construction equipment, and general industrial machinery where a simple and effective bearing arrangement is needed.

Country of Origin

Made in Italy.

CO2 Impact

By purchasing this pre-owned item, you help avoid the emission of 2.4 kg of CO2, which would be generated in the production of a new one. This saving is comparable to the energy needed to charge a smartphone 288 times.

Availability

This item is in stock and ready for immediate dispatch. It is a new-old-stock item in its original, sealed packaging. Order now from PLC2Day for expert support and fast delivery.

FAQ

The limiting speed for the SKF FY 507 M, which typically contains a YAR 207-2F insert bearing, is approximately 5300 r/min. However, this can be affected by lubrication, load, and operating temperature.

Yes, the FY 507 M is a bearing unit consisting of a housing and an insert bearing (e.g., YAR 207-2F). The insert bearing can be replaced independently of the housing, which is a cost-effective maintenance solution.

SKF Y-bearing units like the FY 507 M come pre-filled from the factory with a high-quality grease suitable for a wide range of operating conditions. They are designed to be relubricated via the grease fitting on the housing to maximize service life, especially in contaminated or demanding environments.
