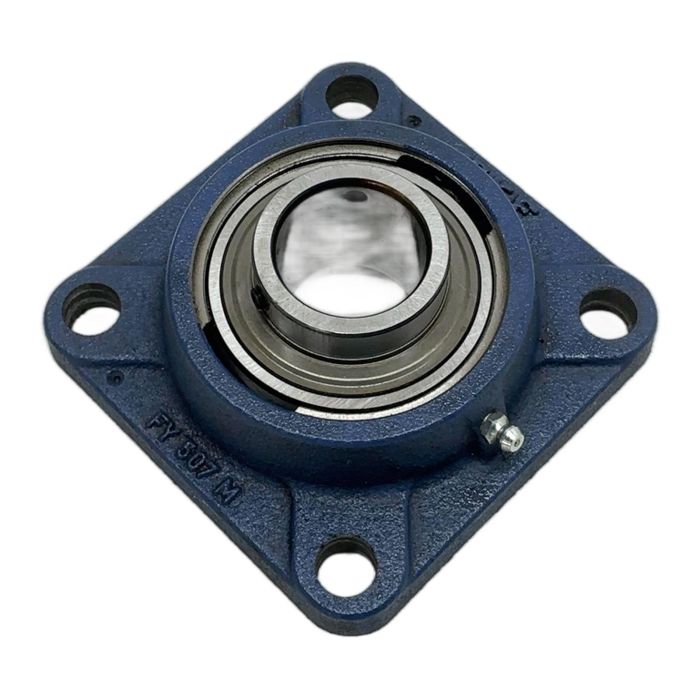

SKF FY 35 TR Square Flange Bearing Unit

Description

The SKF FY 35 TR is a complete, ready-to-mount ball bearing unit. It consists of a robust cast iron housing and a high-quality insert bearing. This unit is designed for applications where the shaft axis is perpendicular to the mounting surface. It is easy to install and can accommodate initial static misalignment, making it a versatile solution for a wide range of industrial machinery.

Specifications

• Manufacturer: SKF
• Part Number: FY 35 TR
• Shaft Diameter: 35 mm
• Housing Material: Cast Iron
• Housing Type: 4-Bolt Square Flange
• Locking Type: Grub screw locking
• Re-lubrication feature: Yes, with grease nipple

Label Info

• Housing Marking: FY 507 M
• Bearing Insert Marking: YAR 207-2RF

Application

Ideal for use in material handling systems, agricultural equipment, food and beverage processing, packaging machines, and industrial fans.

Country of Origin

Made in Italy.

CO2 Impact

Choosing this reused bearing unit saves an estimated 2.2 kg of CO2 compared to manufacturing a new one. This is comparable to the emissions of driving a car for 11 km.

Availability

This is a New Old Stock (NOS) item. The product is new and unused, but the original packaging is damaged. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the main advantage of the grub screw locking system on the YAR 207-2RF insert?

The grub screw (set screw) locking system is simple, effective, and easy to install. It provides a secure grip on the shaft, making it suitable for applications with constant direction of rotation.

Yes, this unit is equipped with a grease nipple on the housing, allowing for re-lubrication to extend the service life of the bearing, especially in contaminated or demanding environments.

Yes, the SKF Y-bearing units like the FY 35 TR are designed to accommodate initial static misalignment of the shaft relative to the housing, which simplifies mounting and prevents premature bearing failure.
