SKF FY 35 TR - 4-Bolt Square Flanged Bearing Unit for 35mm Shaft

Description

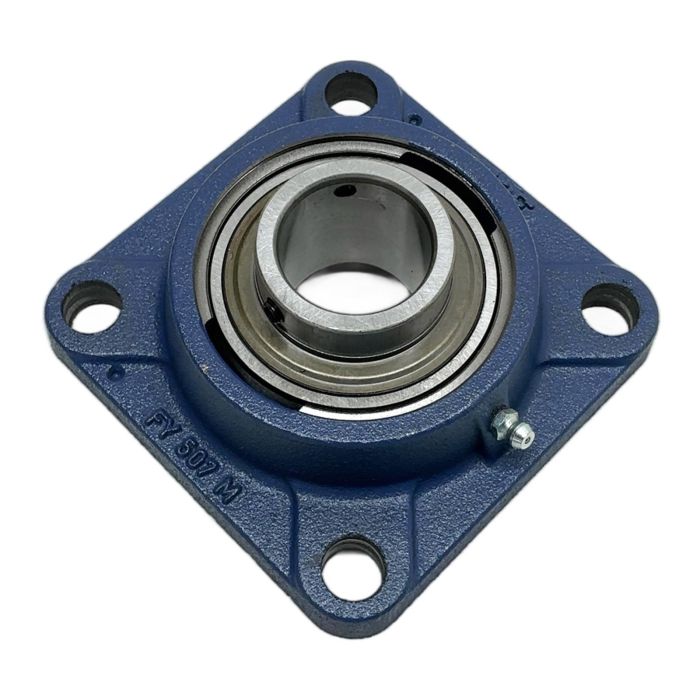

The SKF FY 35 TR is a robust Y-bearing flanged unit featuring a square cast iron housing and a 35mm bore insert bearing. This unit is designed for applications where the bearing support surface is perpendicular to the shaft axis. The 4-bolt mounting provides a secure and stable installation. It includes a grease nipple for easy relubrication, extending the service life of the bearing. This unit is ideal for use in material handling, agricultural machinery, and various industrial applications requiring reliable shaft support.

Specifications

• Manufacturer: SKF
• Part Number: FY 35 TR
• Shaft Diameter: 35 mm
• Housing Type: 4-Bolt Square Flange
• Housing Material: Cast Iron
• Locking Type: Grub screw

Label Info

• Housing Designation: FY 507 M
• Bearing Insert Designation: YAR 207-2RF

Application

This flanged bearing unit is commonly used in conveyor systems, fans, food and beverage processing equipment, and textile machinery.

Country of Origin

Made in Italy.

CO2 Impact

By purchasing this reused item, you contribute to a more sustainable future. You help save approximately 2.6 kg of CO2, which is comparable to the emissions from driving a car for 13 km.

Availability

This item is a new-old-stock product in its original, worn packaging. Order now from PLC2Day for expert support and fast delivery.

FAQ

The grub screw locking system is a simple and effective method for securing the bearing to the shaft. It is easy to install and suitable for applications with constant direction of rotation.

Yes, the FY 507 M housing is equipped with a grease nipple, allowing for easy relubrication to flush out contaminants and replenish grease, maximizing the bearing's service life.

In SKF's nomenclature, 'FY' typically denotes a square flanged housing unit with a Y-bearing. 'YAR' refers to the specific series of insert bearing, which in this case features grub screw locking and standard seals.
