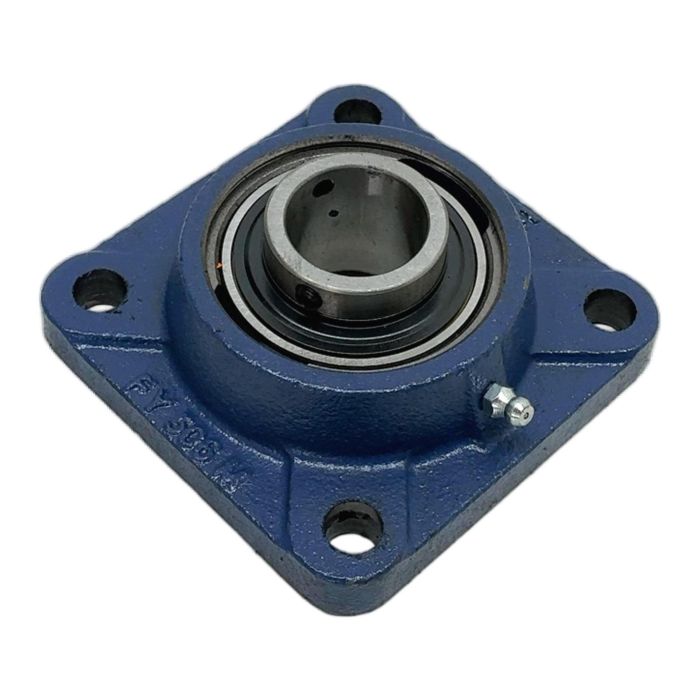

SKF FY 30 TF Square Flanged Bearing Unit

Description

The SKF FY 30 TF is a complete bearing unit, consisting of a cast iron housing and a sealed insert bearing. This square flanged unit is designed for applications where the bearing mounting surface is perpendicular to the shaft axis. With a 30mm bore, it is easily mounted and secured to the shaft via grub screws. The robust design and quality materials ensure reliable operation in demanding industrial environments.

Specifications

• Manufacturer: SKF
• Part Number: FY 30 TF
• Shaft Diameter: 30 mm
• Housing Material: Cast Iron
• Locking Device: Grub screws
• Bearing Insert: YAR 206-2F
• Housing Series: FY 506 M
• Number of Bolt Holes: 4

Label Info

• Brand: SKF
• Model: FY 30 TF
• EAN: 7316577034945

Application

These bearing units are widely used in agricultural machinery, food and beverage processing, packaging equipment, conveyor systems, and general industrial machinery.

Country of Origin

Made in Italy.

CO2 Impact

Reusing this bearing unit avoids the manufacturing of a new one, saving an estimated 1.8 kg of CO2. This is comparable to the emissions saved by driving 9 km in a passenger car.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the proper tightening torque for the grub screws on the YAR 206-2F insert bearing?

The recommended tightening torque for the M6x0.75 grub screws on a 30mm shaft is typically 4 N-m (Newton-meters) as per SKF guidelines to ensure a secure fit without damaging the shaft or bearing.

The standard FY 30 TF unit with its NBR seals is suitable for operating temperatures from -40 to +100 deg C. For higher temperatures, special variants with different seals (e.g., Viton) and grease are required.

SKF recommends using a high-quality, lithium-based grease like SKF LGMT 2 or LGMT 3 for general-purpose relubrication of these Y-bearing units to ensure optimal performance and longevity.
