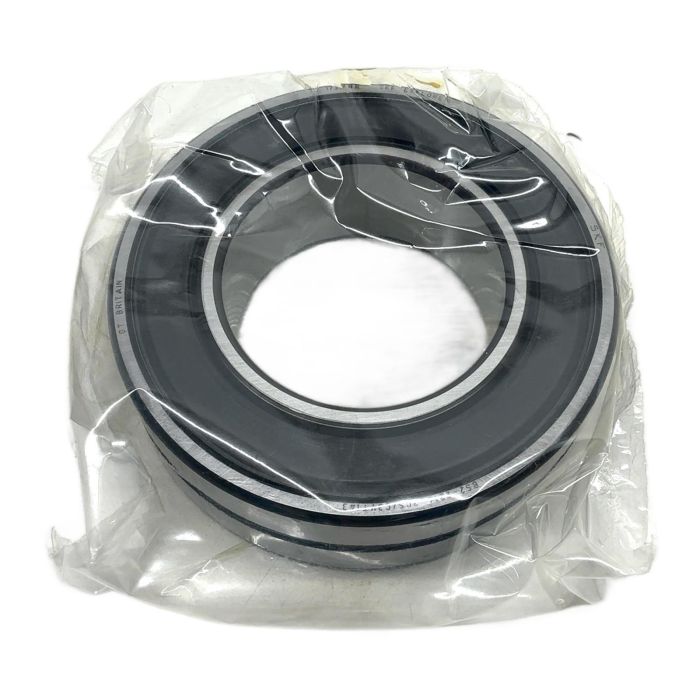

SKF BS2-2214-2CS/C3VT143 Self-Aligning Ball Bearing

Description

This SKF Explorer series self-aligning ball bearing is a premium component designed for reliability and long service life in demanding industrial environments. Its key feature is the ability to accommodate misalignment between the shaft and housing. This unit comes sealed and pre-lubricated, offering a robust, maintenance-friendly solution.

Specifications

• Manufacturer: SKF
• Model: BS2-2214-2CS/C3VT143
• Bore Diameter (d): 70 mm
• Outer Diameter (D): 125 mm
• Width (B): 31 mm
• Sealing: 2CS - NBR contact seals on both sides
• Internal Clearance: C3 - Greater than normal
• Lubrication: Pre-filled with SKF LGMT 2 grease (VT143)
• Performance Class: SKF Explorer

Label Info

• SKF Explorer
• BS2-2214-2CS/C3VT143
• EAN: 7316574541676

Application

Ideal for use in agricultural machinery, fans, conveyors, and other applications where shaft deflection or mounting errors are common. The C3 clearance makes it suitable for setups with higher speeds or temperature variations.

Country of Origin

Made in Great Britain.

CO2 Impact

Choosing this surplus bearing over a new one avoids the production of approximately 3.14 kg of CO2, contributing to a more sustainable industrial operation.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What do the suffixes 2CS, C3, and VT143 mean for this BS2-2214 bearing?

The 2CS indicates that the bearing has NBR contact seals on both sides to protect against contaminants. C3 signifies a radial internal clearance that is greater than normal, which is suitable for applications with temperature differentials or press fits. VT143 specifies that the bearing is pre-filled with SKF LGMT 2 grease, a high-quality multi-purpose industrial grease.

Yes, it is dimensionally interchangeable with any standard 2214 series bearing. However, the SKF Explorer class features enhanced geometry, higher-grade steel, and an improved surface finish, resulting in higher load ratings, reduced friction, and a longer service life compared to non-Explorer versions.

The primary advantage is its ability to accommodate static and dynamic misalignment. The outer ring has a spherical raceway, allowing the inner ring, balls, and cage to rotate freely at an angle relative to the outer ring. This makes it ideal for applications where shaft deflection or mounting inaccuracies are expected.
