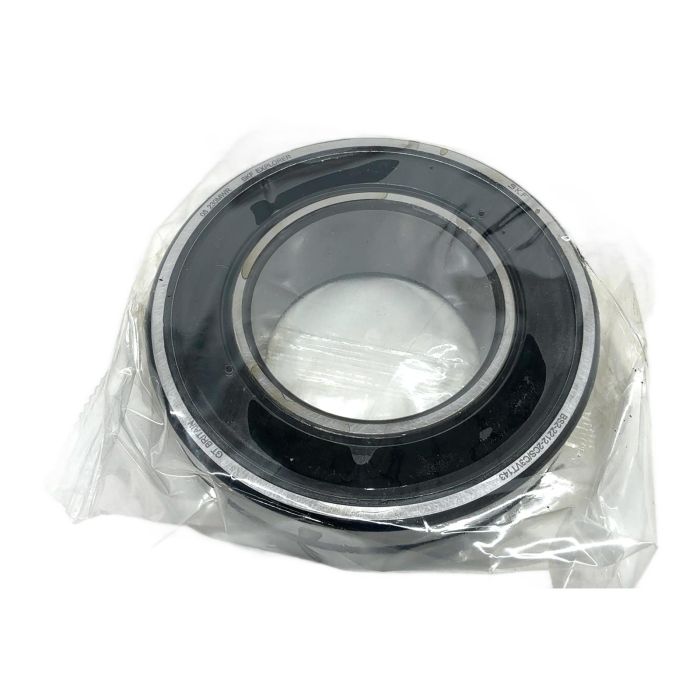

SKF BS2-2212-2CS/C3VT143 Self-Aligning Ball Bearing

Description

The SKF Explorer BS2-2212-2CS/C3VT143 is a high-performance self-aligning ball bearing engineered for reliability in demanding industrial environments. Part of the Explorer class, it offers superior performance, extended service life, and high operational reliability. This specific model is designed to accommodate misalignment and is sealed on both sides to prevent contaminant ingress and retain lubrication.

Specifications

• Inner Diameter: 60 mm
• Outer Diameter: 110 mm
• Width: 28 mm
• Sealing: 2CS - NBR contact seal on both sides
• Internal Clearance: C3 (greater than Normal)
• Grease: VT143 high-temperature grease
• Performance Class: SKF Explorer

Label Info

• Brand: SKF
• Part Number: BS2-2212-2CS /C3VT143
• EAN: 7316575474683

Application

This bearing is particularly well-suited for applications in continuous casting machines within the steel industry, where high temperatures, heavy loads, and potential misalignment are common operational challenges.

Country of Origin

Made in Great Britain.

CO2 Impact

Opting for this component saves approximately 2.2 kg of CO2 compared to manufacturing a new one, contributing to a more sustainable industrial practice.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What does the suffix '/C3VT143' mean for this SKF bearing?

The 'C3' indicates that the bearing has an internal radial clearance greater than Normal, which is necessary for applications with temperature differences between the inner and outer rings or for press fits. The 'VT143' specifies the type of factory-filled grease, which is Polylub HVT, a high-temperature grease suitable for the demanding environments this bearing is designed for.

Is the BS2-2212-2CS suitable for applications with misalignment?

Yes, as a self-aligning ball bearing, its primary feature is the ability to accommodate static and dynamic misalignment. The spherical outer ring raceway allows the inner ring, balls, and cage to rotate freely around the bearing center, compensating for shaft deflection or housing alignment errors.

What are the main applications for the SKF BS2-2212-2CS bearing?

This bearing is specifically designed for the roller segments of continuous casting machines in the steel industry. Its features, including the cylindrical outer ring, robust sealing (2CS), special grease (VT143), and ability to handle misalignment, make it ideal for the high temperatures, heavy loads, and contaminated environments found in these applications.
