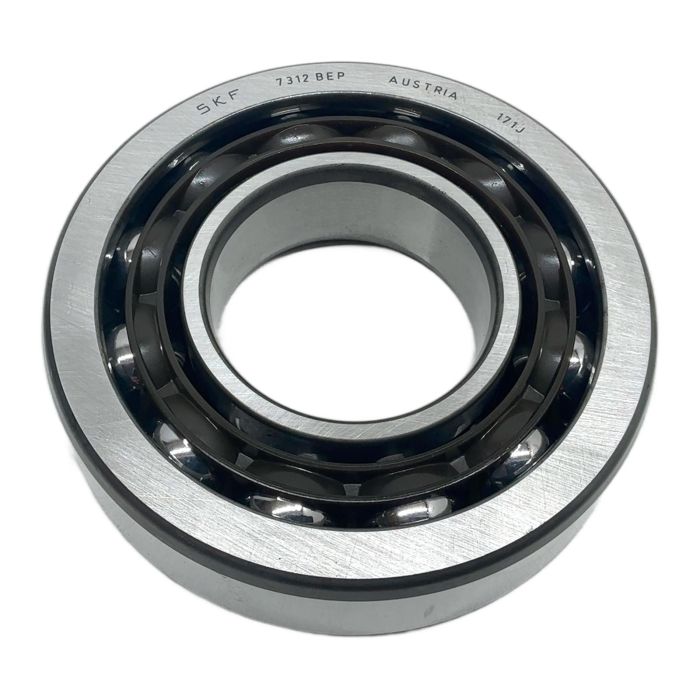

SKF 7312 BEP Angular Contact Ball Bearing

Description

The SKF 7312 BEP is a single row angular contact ball bearing designed for high-speed operation and high load-carrying capacity. It is universally matchable, allowing for flexible arrangements to suit various application requirements. The 40-degree contact angle makes it ideal for accommodating high axial loads in one direction, as well as combined radial and axial loads.

Specifications

• Manufacturer: SKF
• Type: 7312 BEP
• Bore Diameter (d): 60 mm
• Outer Diameter (D): 130 mm
• Width (B): 31 mm
• Contact Angle: 40 degrees
• Cage Material: Glass fibre reinforced polyamide 6,6
• Design: Optimized internal design (E-suffix)

Label Info

• Brand: SKF
• Model: 7312 BEP
• EAN: 7316576634468

Application

This bearing is suitable for a wide range of industrial applications, including machine tool spindles, pumps, compressors, and gearboxes where precision and reliability are critical.

Country of Origin

This product is Made in Austria.

CO2 Impact

By purchasing this reused bearing, you are contributing to a circular economy and avoiding approximately 4.0 kg of CO2 emissions associated with the production of a new one.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The 'BEP' suffix indicates specific design features. 'B' stands for a 40-degree contact angle. 'E' signifies an optimized internal design for higher load capacity. 'P' refers to the cage material, which is a glass fibre reinforced polyamide 6,6, offering a good balance of strength and elasticity.

Yes, SKF angular contact ball bearings like the 7312 BEP are commonly mounted in pairs. They are designed for universal matching, meaning they can be arranged back-to-back (DB), face-to-face (DF), or in tandem (DT) to handle different load combinations.

The 7312 BEP with its polyamide cage is suitable for both grease and oil lubrication. However, the operating temperature should not exceed 120 deg C for extended periods. It is crucial to verify lubricant compatibility with polyamide to prevent premature cage failure, especially when using synthetic oils.
