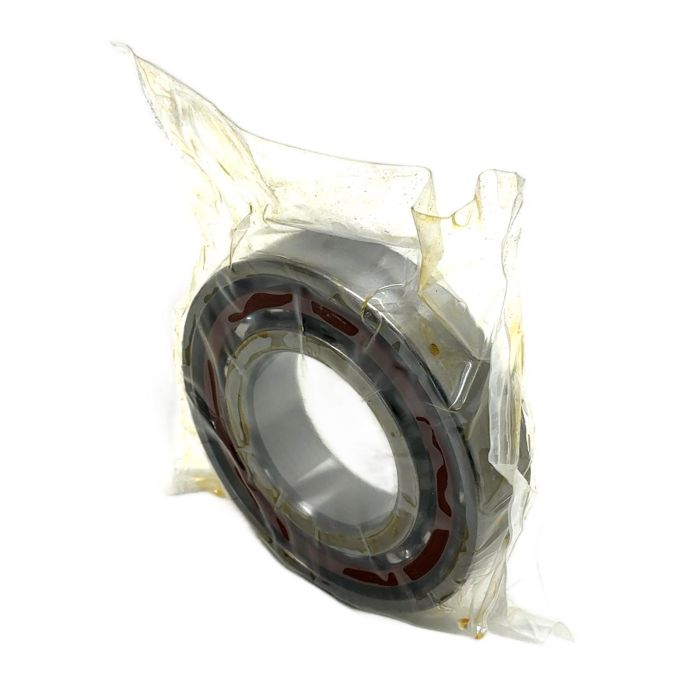

SKF 7208 CDGA/P4A High-Precision Angular Contact Ball Bearing

Description

This is a new old stock SKF 7208 CDGA/P4A single row angular contact ball bearing. It is designed for high-speed, high-precision applications such as machine tool spindles, where rigidity and running accuracy are critical. The 15-degree contact angle is suitable for accommodating combined (axial and radial) loads. This universally matchable bearing with a light preload (GA) ensures optimal performance when mounted in pairs.

Specifications

• Manufacturer: SKF
• Type: 7208 CDGA/P4A
• Category: Single Row Angular Contact Ball Bearing
• Bore Diameter: 40 mm
• Outside Diameter: 80 mm
• Width: 18 mm
• Contact Angle: 15 degrees (Code CD)
• Preload: Light (Code GA)
• Precision Class: P4A (ISO Class 4)

Label Info

• Brand: SKF
• Model: 7208 CDGA/P4A
• Country of Origin: Italy

Application

Ideal for use in machine tool spindles, high-speed pumps, robotics, and other precision machinery that requires high rotational accuracy and the ability to support combined loads.

Country of Origin

Made in Italy.

CO2 Impact

By choosing this pre-owned bearing, you are avoiding the emission of approximately 0.8 kg of CO2 associated with the production of a new one. This saving is equivalent to charging a smartphone 96 times.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What does the 'GA' suffix in 7208 CDGA/P4A signify?

The 'GA' suffix indicates that this is a universally matchable bearing designed for a light preload when mounted in a pair (e.g., back-to-back or face-to-face).

What is the P4A precision class equivalent to?

The SKF P4A precision class is equivalent to ISO Class 4 and ABEC 7 standards. It denotes very high dimensional and running accuracy, suitable for high-precision applications.

Can this bearing be used as a standalone unit?

While it is a single bearing, it is designed for universal matching and is almost always used in pairs to handle axial loads in both directions and to apply the correct preload for system rigidity.
