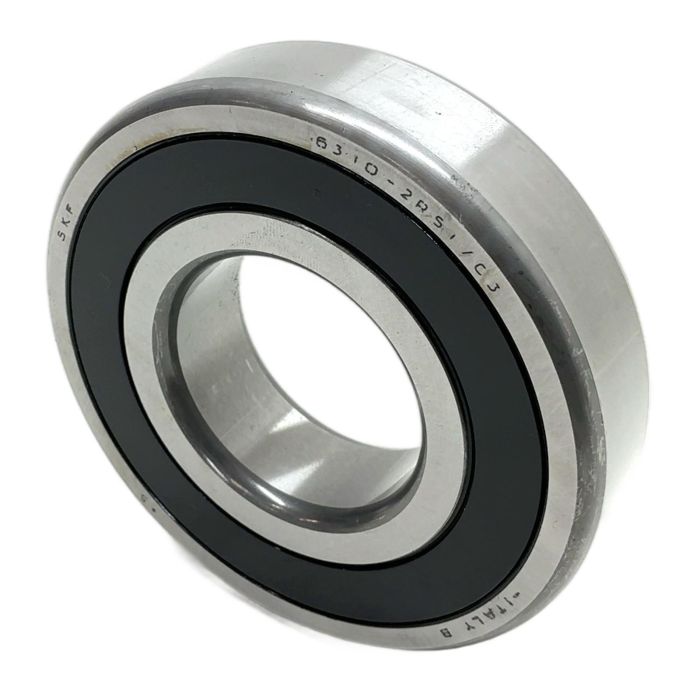

SKF 6310-2RS1/C3 Deep Groove Ball Bearing

Description

The SKF 6310-2RS1/C3 is a high-performance single-row deep groove ball bearing. It is engineered for reliability and long service life in demanding industrial environments. Featuring contact seals on both sides, it provides excellent protection against dust, dirt, and moisture, while retaining the factory-filled lubricant. The C3 internal clearance accommodates thermal expansion, making it suitable for applications involving high rotational speeds or temperature gradients.

Specifications

• Manufacturer: SKF
• Part Number: 6310-2RS1/C3
• Type: Single-Row Deep Groove Ball Bearing
• Bore Diameter (d): 50 mm
• Outside Diameter (D): 110 mm
• Width (B): 27 mm
• Seals: 2RS1 - NBR contact seal on both sides
• Internal Clearance: C3
• Material: High-quality bearing steel

Label Info

• Brand: SKF
• Model: 6310-2RS1/C3
• Origin: Italy

Application

This versatile bearing is suitable for a wide range of applications, including electric motors, pumps, gearboxes, conveyors, and general industrial machinery where reliability and minimal maintenance are critical.

Country of Origin

This SKF bearing is proudly made in Italy.

CO2 Impact

By purchasing this pre-owned component, you are actively contributing to the circular economy and have helped avoid 2.4 kg of CO2 emissions associated with the production of a new part.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question?

What does the '2RS1' designation mean on this SKF bearing?

The '2RS1' suffix indicates that the bearing is sealed on both sides ('2'). The seal itself ('RS1') is a sheet steel reinforced contact seal made of Acrylonitrile-butadiene rubber (NBR), providing excellent protection against dust, dirt, and moisture ingress.

Why is the 'C3' clearance important for my application?

The 'C3' indicates that the bearing has an internal radial clearance that is greater than 'Normal'. This extra clearance is necessary in applications with high rotational speeds, significant temperature gradients between the inner and outer rings, or where a press fit is used on both rings, as it accommodates thermal expansion and prevents bearing seizure.

Can I use a different grease with this 6310-2RS1/C3 bearing?

This bearing comes pre-lubricated from the factory with a high-quality grease designed for a wide range of operating conditions. The RS1 seals are designed to retain this grease for the life of the bearing. It is not recommended to attempt to wash out the factory grease and relubricate it, as this can damage the seals and introduce contaminants.
