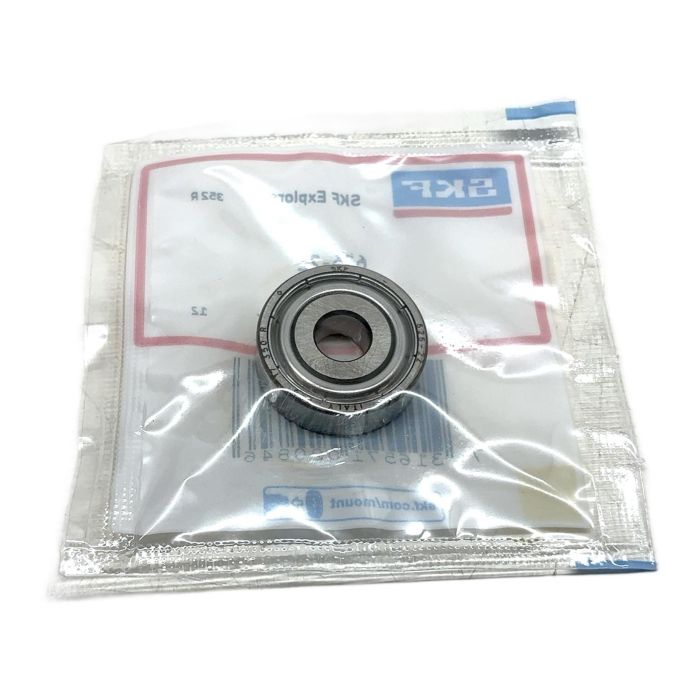

SKF 626-2Z Deep Groove Ball Bearing

Description

The SKF 626-2Z is a single-row deep groove ball bearing from the high-performance Explorer series. It is a versatile and robust bearing suitable for a wide variety of applications. The '2Z' designation indicates that it is equipped with metal shields on both sides to prevent the ingress of dirt and to retain the lubricant. This makes the bearing virtually maintenance-free.

Specifications

• Bore Diameter (d): 6 mm
• Outside Diameter (D): 19 mm
• Width (B): 6 mm
• Seals: 2Z (Double-sided metal shields)
• Series: SKF Explorer
• Material: Bearing Steel
• Static Load Rating: 0.95 kN
• Dynamic Load Rating: 2.34 kN

Label Info

• Brand: SKF
• Model: 626-2Z
• Part Number: 626-2Z

Application

Ideal for use in electric motors, gearboxes, pumps, fans, and various industrial and automotive applications where high speeds and radial loads are present.

Country of Origin

Made in Italy.

CO2 Impact

Opting for this component helps avoid the CO2 emissions associated with new production, contributing to a more sustainable industrial practice. Each bearing represents a small but meaningful saving in raw materials and energy.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The '2Z' suffix indicates that the bearing is fitted with two metal shields, one on each side. These shields protect the bearing's internal components from larger contaminants and help retain the factory-filled grease, making it a maintenance-free component for many applications.

The SKF Explorer class represents a higher performance standard. These bearings are manufactured from extremely clean, homogenous steel and feature optimized internal geometry and surface finish. This results in reduced friction, lower operating temperatures, higher load-carrying capacity, and a significantly longer service life compared to standard bearings.

SKF 626-2Z bearings are typically filled with a high-quality, all-purpose grease suitable for a wide range of operating temperatures, commonly up to around 120 deg. C. For applications consistently running at higher temperatures, it is crucial to consult the SKF technical datasheet to verify the specific grease type and its temperature limits.
