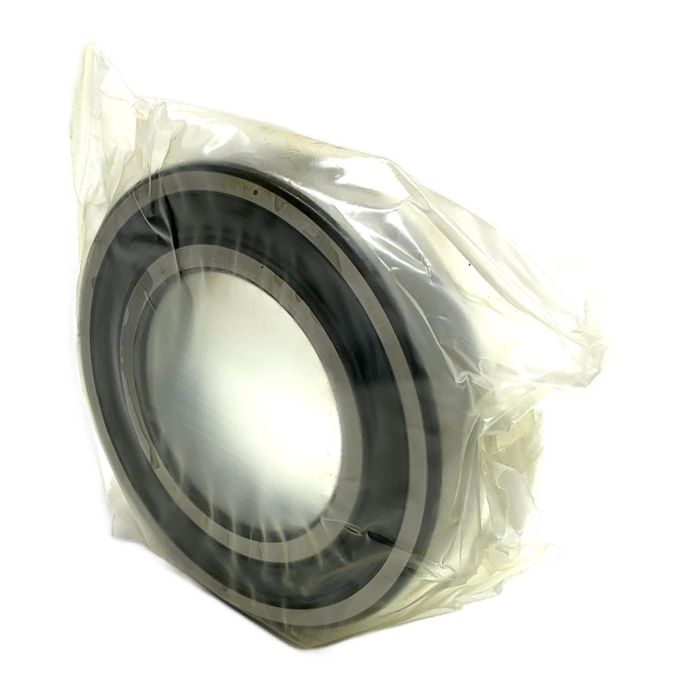

SKF 6214-2RS1 Explorer Deep Groove Ball Bearing

Description

This SKF 6214-2RS1 is a high-quality deep groove ball bearing from the Explorer performance class. It is designed to handle both radial and axial loads in both directions and is suitable for high-speed operation. The bearing is sealed on both sides to protect against contaminants and retain grease, making it a versatile and low-maintenance solution for various industrial applications.

Specifications

• Bore Diameter (d): 70 mm
• Outside Diameter (D): 125 mm
• Width (B): 24 mm
• Seals: 2RS1 - NBR contact seal on both sides
• Performance Class: SKF Explorer
• Material: High-grade bearing steel

Label Info

• Brand: SKF
• Model: 6214-2RS1
• EAN: 7316570615043

Application

Ideal for use in electric motors, gearboxes, pumps, conveyors, and general industrial machinery where reliability and long service life are critical.

Country of Origin

Made in France

CO2 Impact

Opting for this component prevents the emission of approximately 2.18 kg of CO2, which is involved in the production of a new unit. This saving is comparable to the CO2 absorption of a small tree over several months.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question?

What does the "2RS1" suffix mean on this SKF 6214 bearing?

The "2RS1" suffix indicates that the bearing has a contact seal made of nitrile butadiene rubber (NBR) on both sides. This provides excellent protection against contaminants and retains lubricant effectively.

What is the significance of the "Explorer" designation?

The "Explorer" class represents SKF's line of high-performance bearings. They are manufactured from extremely clean, homogenous steel and feature unique heat treatment and geometry optimizations, resulting in higher dynamic load ratings, reduced friction, and longer service life compared to standard bearings.

What is the correct mounting procedure for a sealed bearing like the 6214-2RS1?

It is crucial to press only on the ring being fitted. When mounting on a shaft, apply force to the inner ring. When mounting in a housing, apply force to the outer ring. Never transmit mounting forces through the rolling elements, as this can damage the raceways. Using a bearing fitting tool or an induction heater is recommended.
