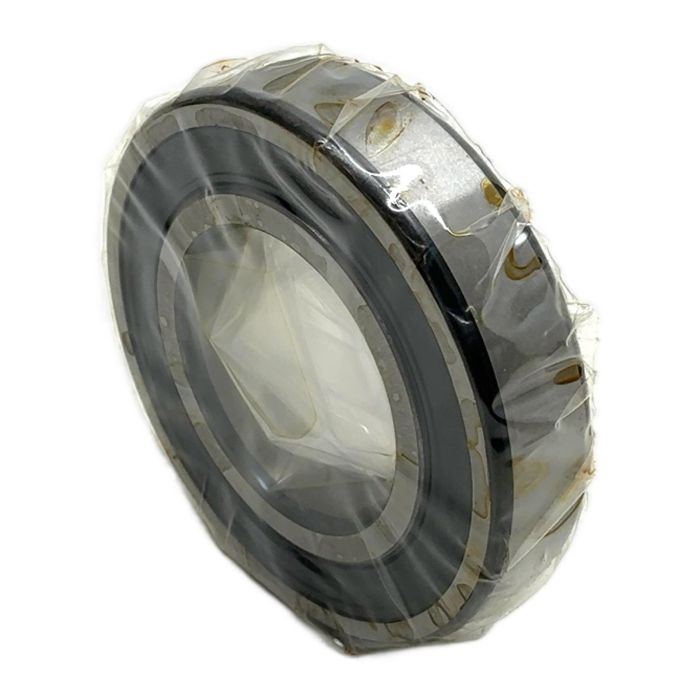

SKF 6209-2RS1 Deep Groove Ball Bearing

Description

The SKF 6209-2RS1 is a versatile and robust single-row deep groove ball bearing. It is designed to accommodate radial and axial loads in both directions and is suitable for high-speed operation. This bearing comes pre-lubricated and is equipped with contact seals on both sides to retain the lubricant and protect against contamination, ensuring a long service life.

Specifications

• Bore Diameter (d): 45 mm
• Outer Diameter (D): 85 mm
• Width (B): 19 mm
• Seals: Two NBR contact seals (2RS1 designation)
• Material: High-quality bearing steel
• Static Load Rating: 20 kN
• Dynamic Load Rating: 32.5 kN

Label Info

• Manufacturer: SKF
• Model: 6209-2RS1

Application

This bearing is widely used in applications such as electric motors, pumps, gearboxes, agricultural machinery, and material handling equipment where reliability and performance are critical.

Country of Origin

Made in Italy.

CO2 Impact

By choosing this new old stock bearing, you help avoid the production of a new one, saving approximately 0.82 kg of CO2 emissions.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The '2RS1' designation indicates that the bearing is sealed on both sides ('2R') with a sheet steel reinforced contact seal made of Acrylonitrile-butadiene rubber (NBR) ('S1'). These seals provide excellent protection against contaminants and moisture.

Yes, while the contact seals (2RS1) introduce more friction than non-contact shields (2Z), this bearing is still designed for high-speed operation. However, for extremely high speeds, a bearing with 2Z shields might be more appropriate. Always check the limiting speed in the manufacturer's datasheet for your specific application.

The SKF 6209-2RS1 is lubricated for life with a high-quality grease and does not require re-lubrication. The seals are designed to retain the grease and prevent contamination throughout the bearing's operational life.
