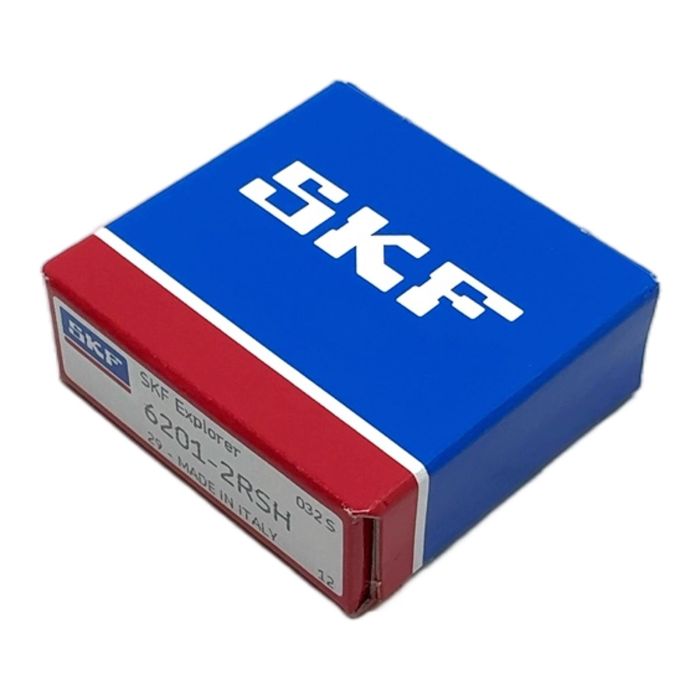

SKF 6201-2RSH Deep Groove Ball Bearing

Description

The SKF 6201-2RSH is a high-quality, single-row deep groove ball bearing from the SKF Explorer performance class. It is designed for high running accuracy and low friction, making it suitable for a wide range of industrial applications. The bearing is sealed on both sides with nitrile rubber (NBR) contact seals to retain lubricant and protect against contamination.

Specifications

• Bore Diameter: 12 mm
• Outside Diameter: 32 mm
• Width: 10 mm
• Sealing: Contact seal on both sides (2RSH)
• Material: Bearing Steel
• Limiting Speed: 17,000 r/min
• Basic Dynamic Load Rating: 6.89 kN
• Basic Static Load Rating: 2.8 kN

Label Info

• Brand: SKF
• Type: 6201-2RSH
• Series: SKF Explorer

Application

Ideal for use in electric motors, gearboxes, pumps, agricultural machinery, and material handling equipment where reliability and long service life are critical.

Country of Origin

Made in Italy.

CO2 Impact

Opting for this component saves 0.074 kg of CO2 compared to new production, contributing to a more sustainable operation.

Availability

In stock and ready for dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The '2RSH' designation indicates that the bearing has an optimized contact seal made of Acrylonitrile-butadiene rubber (NBR) on both sides. This provides excellent protection against liquid and solid contaminants and ensures lubricant retention.

Yes, SKF Explorer bearings are manufactured to higher precision with improved materials and geometry. This results in longer service life, lower operating temperatures, and the ability to handle higher loads and speeds compared to standard SKF bearings.

The standard NBR seals (RSH) are suitable for operating temperatures up to 100 deg C (212 deg F). For continuous temperatures above this, a bearing with different seal material, such as Viton (RS2), would be recommended.
