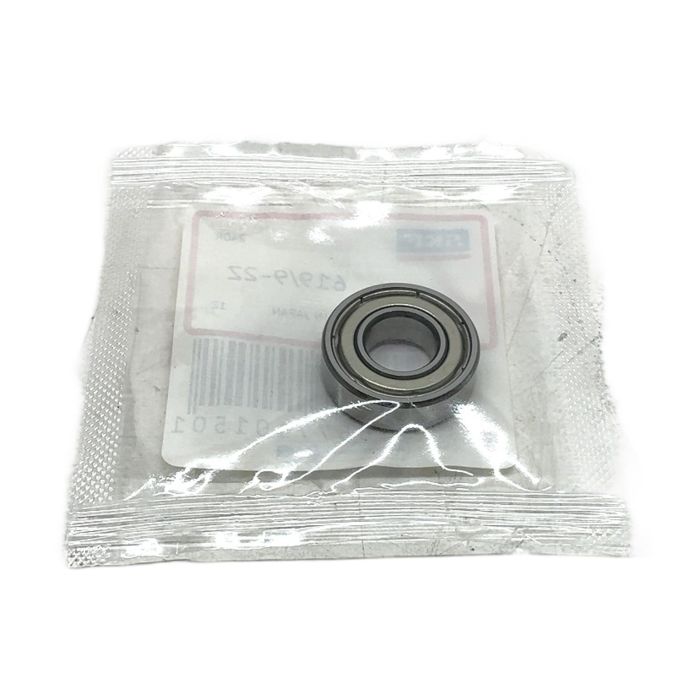

SKF 619/9-2Z Deep Groove Ball Bearing

Description

The SKF 619/9-2Z is a high-precision, single-row deep groove ball bearing. It is a versatile and popular choice for a wide variety of applications due to its simple design, non-separability, and suitability for high speeds. The metal shields on both sides of the bearing protect the raceways from dirt and debris, while retaining the factory-filled grease for maintenance-free operation.

Specifications

• Manufacturer: SKF
• Type Number: 619/9-2Z
• Bore Diameter (d): 9 mm
• Outside Diameter (D): 20 mm
• Width (B): 6 mm
• Sealing: 2Z - Metal shield on both sides
• Material: Bearing Steel
• Dynamic Load Rating: 2.34 kN
• Static Load Rating: 0.95 kN

Label Info

• Model: 619/9-2Z
• EAN: 7316577101501

Application

This bearing is commonly used in small electric motors, gearboxes, pumps, power tools, and other machinery requiring reliable rotational motion with low friction.

Country of Origin

This product is made in Japan.

CO2 Impact

Choosing a reused or surplus component like this SKF bearing avoids the emissions associated with new manufacturing, saving approximately 0.02 kg of CO2. This is comparable to the energy needed to charge a smartphone almost two times.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The '2Z' suffix indicates that the bearing is equipped with a pressed sheet steel shield on both sides. These shields are non-contact, meaning they do not touch the inner ring, which results in very low friction while still providing effective protection against larger contaminant particles.

Yes, deep groove ball bearings, especially with non-contact shields like the '2Z' type, are well-suited for high and very high-speed operations due to their low frictional torque.

SKF '2Z' bearings are typically supplied lubricated for life with a specific type and quantity of grease and do not require re-lubrication under normal operating conditions. Attempting to add more grease can damage the shields and lead to premature failure.
