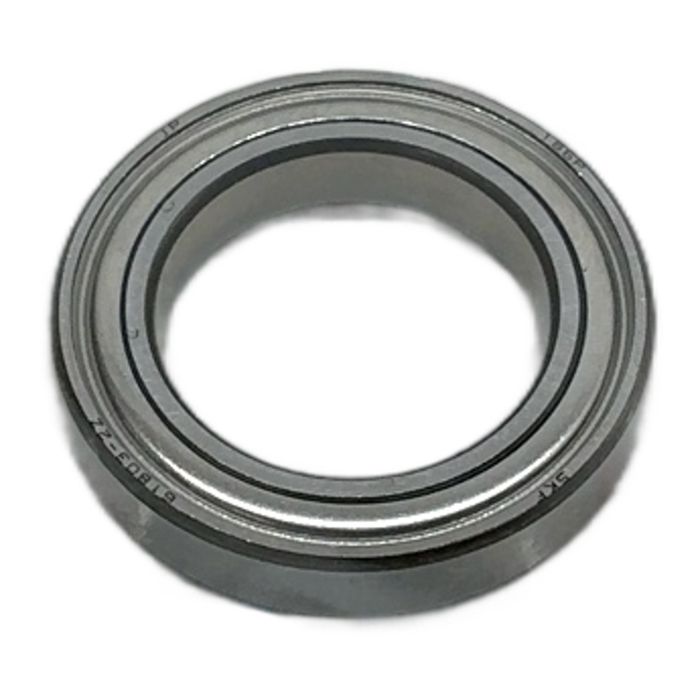

SKF 61803-2Z Deep Groove Ball Bearing

Description

The SKF 61803-2Z is a high-precision, single-row deep groove ball bearing designed for reliability and long service life. It is particularly versatile and suitable for high and very high speeds, accommodating both radial and axial loads in both directions. The '2Z' suffix indicates that the bearing is equipped with a pressed steel shield on both sides to prevent the ingress of dirt and retain the lubricant.

Specifications

• Manufacturer: SKF
• Model: 61803-2Z
• Bore Diameter (d): 17 mm
• Outer Diameter (D): 26 mm
• Width (B): 5 mm
• Sealing: Shield on both sides (2Z)
• Material: Bearing Steel
• Basic Dynamic Load Rating: 1.53 kN
• Basic Static Load Rating: 0.88 kN

Label Info

• Brand: SKF
• Part Number: 61803-2Z
• EAN: 7316577611543

Application

This bearing is commonly used in electric motors, gearboxes, industrial machinery, automotive components, and other applications requiring efficient power transmission and minimal friction.

Country of Origin

Made in Japan.

CO2 Impact

By purchasing this pre-owned component, you contribute to a circular economy and help avoid 0.016 kg of CO2 emissions associated with new production.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The '2Z' designation means the bearing is fitted with two metal shields (one on each side). These shields protect the bearing's interior from larger contaminants without making contact with the inner ring, which allows for higher speed ratings compared to sealed (2RS) bearings.

Standard SKF 61803-2Z bearings with steel shields are filled with a standard grease and are suitable for operating temperatures up to 120 deg C (250 deg F). For higher temperatures, special grease and materials would be required.

For a small bearing, it is crucial to apply pressure only to the ring being press-fitted. For a shaft fit, press on the inner ring; for a housing fit, press on the outer ring. Never transmit the mounting force through the rolling elements, as this can damage the bearing.
