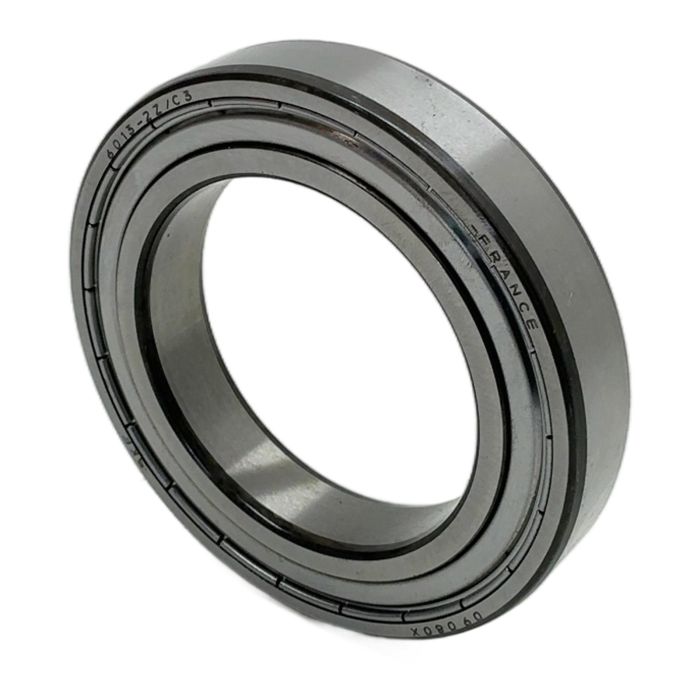

SKF 6013-2Z/C3 Deep Groove Ball Bearing

Description

The SKF 6013-2Z/C3 is a high-performance single-row deep groove ball bearing engineered for versatility and reliability. Featuring a 65mm bore, 100mm outer diameter, and 18mm width, it is suitable for a wide array of industrial applications. The '2Z' designation indicates that the bearing is equipped with non-contacting metal shields on both sides, offering excellent protection against solid contaminants without increasing friction. The 'C3' radial internal clearance is greater than standard, making this bearing ideal for applications involving high speeds or significant temperature differentials between the inner and outer rings.

Specifications

• Manufacturer: SKF
• Model: 6013-2Z/C3
• Type: Single-Row Deep Groove Ball Bearing
• Bore Diameter: 65 mm
• Outer Diameter: 100 mm
• Width: 18 mm
• Sealing: 2Z (Metal shields on both sides)
• Internal Clearance: C3
• Material: Bearing Steel

Label Info

• Brand: SKF
• Part Number: 6013-2Z/C3
• Origin: France

Application

Commonly used in electric motors, pumps, gearboxes, fans, and conveyor systems where reliability and performance under demanding conditions are critical.

Country of Origin

This SKF bearing is manufactured in France, ensuring high-quality production standards.

CO2 Impact

Opting for this component helps avoid the emission of approximately 0.92 kg of CO2, which is associated with the production of a new steel bearing. This is a conscious choice for sustainability in your supply chain.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The '2Z' (or ZZ) suffix indicates that the bearing has a pressed sheet steel shield on both sides. These shields are non-contacting and protect the bearing from larger particles of contamination while adding no friction compared to sealed bearings.

C3 clearance is a radial internal clearance greater than 'Normal'. It is specified for applications where there might be a tight fit on the shaft or in the housing, or where temperature differences between the inner and outer rings can reduce the operational clearance. It is essential for high-speed or high-temperature applications.

No, bearings with 2Z shields are pre-filled with a specific amount of high-quality grease and are considered lubricated for life. The shields are not designed for removal and re-fitting, so re-lubrication is not possible or necessary under normal operating conditions.
