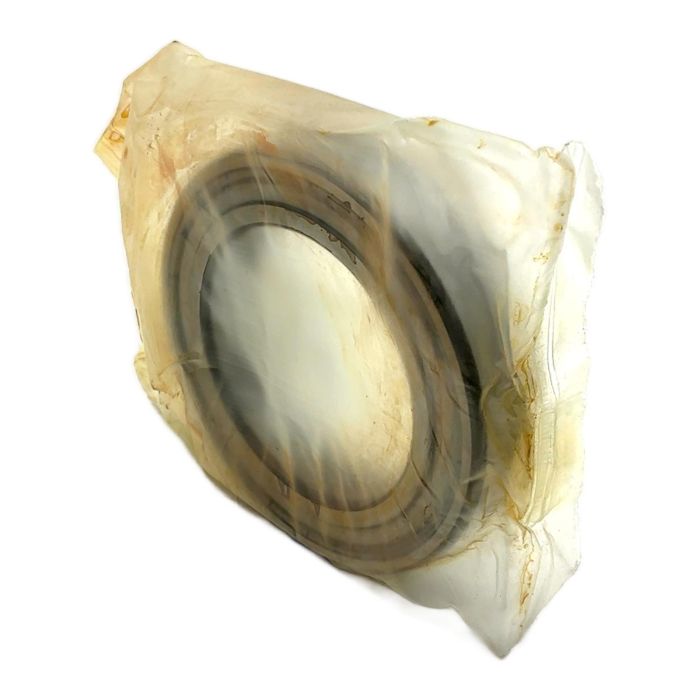

SKF 6013-2Z Deep Groove Ball Bearing

Description

The SKF 6013-2Z is a versatile and robust single-row deep groove ball bearing. It is designed to handle both radial and axial loads in both directions. Featuring two metal shields, it offers protection against the ingress of solid contaminants, enhancing its service life in industrial environments. This bearing is a staple in applications ranging from electric motors and gearboxes to pumps and agricultural machinery.

Specifications

• Manufacturer: SKF
• Model: 6013-2Z
• Bore Diameter (d): 65 mm
• Outside Diameter (D): 100 mm
• Width (B): 18 mm
• Shields: Two metal shields (2Z suffix)
• Material: Bearing Steel

Label Info

• Part Number: 6013-2Z
• Barcode: 7516570481075

Application

This bearing is suitable for a wide variety of high-speed applications that require low friction and reliable performance, such as in industrial fans, electric motors, and power transmission systems.

Country of Origin

Made in France.

CO2 Impact

By purchasing this reused New Old Stock item, you are helping to avoid the production of a new one, saving an estimated 0.9 kg of CO2 emissions. This is a smart choice for both your budget and the environment.

Availability

This is a New Old Stock (NOS) item. The outer packaging may show signs of wear from storage, but the bearing itself is new, unused, and in its original sealed inner packaging. Order now from PLC2Day for expert support and fast delivery.

FAQ

What does the "2Z" suffix mean on the SKF 6013-2Z bearing?
The "2Z" suffix indicates that the bearing is fitted with two pressed sheet steel shields, one on each side. These non-contact shields protect the bearing's interior from larger solid contaminants without increasing rotational friction.

Is this bearing pre-lubricated and ready for installation?
Yes, SKF bearings with the 2Z suffix are supplied pre-filled with a specific quantity of high-quality grease. They are considered lubricated for life under normal operating conditions and do not require re-lubrication.

What is the difference between a 6013-2Z and a 6013-2RSH bearing?
The primary difference is the sealing type. The 6013-2Z has non-contact metal shields, offering good protection at high speeds with low friction. The 6013-2RSH features contact seals made from nitrile rubber (NBR), which provide superior protection against fine contaminants and moisture, but with slightly higher friction and lower speed limits.
