• Double row angular contact ball bearing
• Specifications:
  • Also known as: 3302A-2RS1TN9, 3302-B-2RSR-TVH
  • Category: Angular Contact Ball Bearing Double Row
  • Weight: 0.1268 kg
  • Dimensions:
    • Inner (d) MM: 15.00
    • Outer (D) MM: 42.00
    • Width (B) MM: 19.00
    • Inner (d) Inch: 0.5906
    • Outer (D) Inch: 1.6535
    • Width (B) Inch: 0.7480
  • Product Properties:
    • Bore: C - Cylindrical Bore
    • Seal: 2RS - Rubber Seal on Two Sides
    • Cage Type: P - Plastic Molded Cage
    • External Modification: No External Modification
    • Radial Internal Play: Cn Normal Internal Play
    • Precision: Standard Precision
    • Lubrication: M - Grease with Lithium Thickener
    • Heat Stabilization: No Heat Stabilization - Temperatures up to 120 °C
    • Split Inner ring / Outer ring: Standard
    • Suffix description: A, Double Row Angular Contact Ball Bearing Without Filling Slots
    • 2RS1: Sheet Steel Reinforced Contact Seal Of Acrylonitrile-Butadiene Rubber (NBR) On Both Sides Of The Bearing
    • TN9: Injection Moulded Snap-Type Cage Of Glass Fibre Reinforced Polyamide 6,6, Ball Centered
    • MT33: Lithium Grease, Medium Temp. 74 cSt @ 40°C, -30°C/+120°C, A Two-Figure Number Following MT Identifies The Actual Grease. An Additional Letter Or Letter/Figure Combination As Mentioned Under 'HT' Identifies Filling Degrees Other Than Standard. Examples: MT33 Or MT37F9

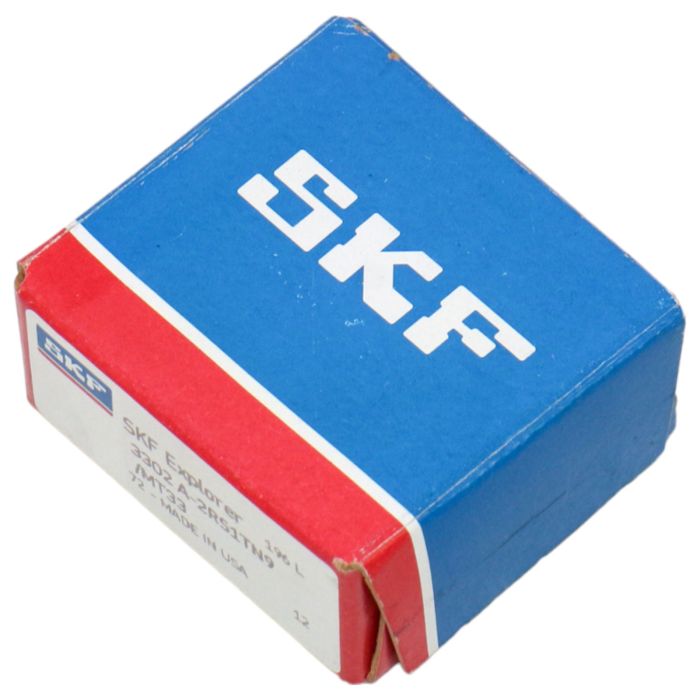

3302A-2RS1TN9/MT33 SKF is a high-quality double row angular contact ball bearing suitable for various industrial applications. This item can be purchased at PLC2Day.
