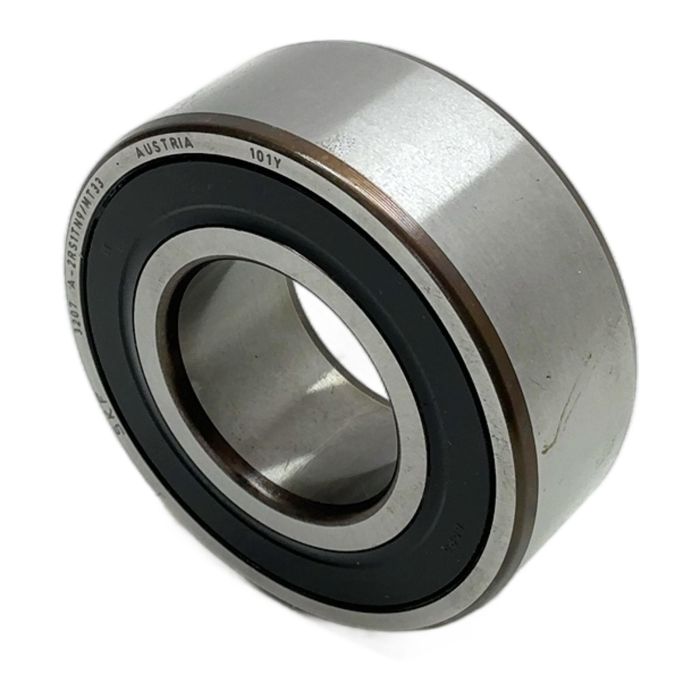

SKF 3207 A-2RS1TN9/MT33 Angular Contact Ball Bearing

Description

This is a high-quality double row angular contact ball bearing from SKF, model 3207 A-2RS1TN9/MT33. Designed to accommodate both radial and axial loads in both directions, it is ideal for arrangements where rigid axial guidance is necessary. As part of the SKF Explorer class, this bearing offers enhanced performance, durability, and reliability.

Specifications

• Manufacturer: SKF
• Type Number: 3207 A-2RS1TN9/MT33
• Bore Diameter: 35 mm
• Outside Diameter: 72 mm
• Width: 27 mm
• Sealing: 2RS1 - NBR contact seal on both sides
• Cage Material: TN9 - Glass fibre reinforced polyamide 6,6
• Lubrication: MT33 - Lithium grease

Label Info

• SKF 3207 A-2RS1TN9/MT33
• AUSTRIA

Application

These bearings are well-suited for use in pumps, compressors, gearboxes, and agricultural machinery where combined loads and shaft rigidity are critical factors.

Country of Origin

Made in Austria.

CO2 Impact

By purchasing this pre-owned bearing, you are helping to avoid the emission of approximately 0.9 kg of CO2 associated with the production of a new one.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What does the suffix 'A-2RS1TN9/MT33' signify?
The suffix provides key details: 'A' indicates an optimized internal design. '2RS1' means it has nitrile rubber contact seals on both sides. 'TN9' refers to its glass fibre reinforced polyamide cage. 'MT33' specifies the pre-filled lithium-based grease, suitable for temperatures from -30 to +120 deg Celsius.

Can this bearing accommodate misalignment?
No, double row angular contact ball bearings like the 3207 A are rigid and cannot accommodate any angular misalignment between the shaft and housing. Proper alignment during installation is crucial for its service life.

Is it necessary to lubricate this bearing upon installation?
No, this bearing is supplied pre-greased with SKF MT33 grease and is sealed for life. It is designed to be maintenance-free under normal operating conditions. Adding more grease could damage the seals.
