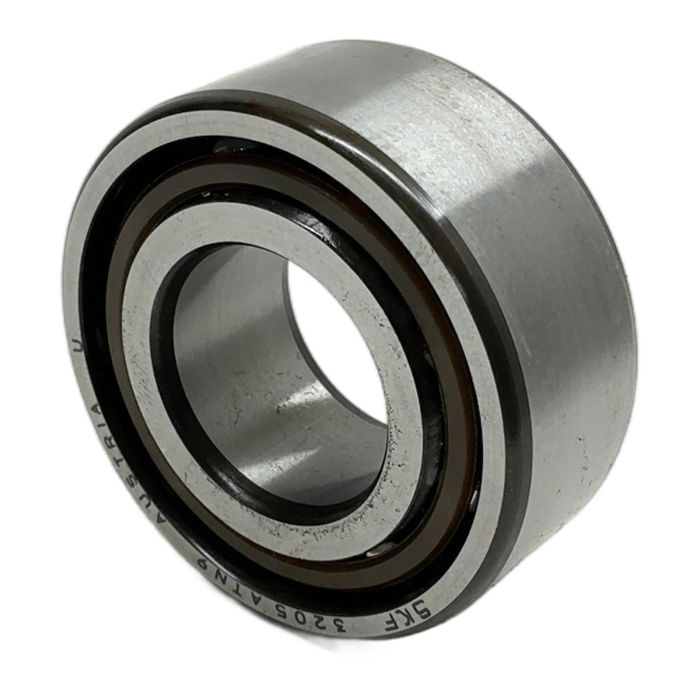

SKF 3205 ATN9 - Double Row Angular Contact Ball Bearing

Description

The SKF 3205 ATN9 is a high-precision double row angular contact ball bearing designed for applications requiring accommodation of combined radial and axial loads. Its robust construction ensures reliable performance and a long service life in demanding industrial environments.

Specifications

• Manufacturer: SKF
• Type: 3205 ATN9
• Category: Double Row Angular Contact Ball Bearing
• Bore Diameter (d): 25 mm
• Outside Diameter (D): 52 mm
• Width (B): 20.6 mm
• Cage: Glass fibre reinforced PA66
• Limiting Speed: 13000 r/min

Label Info

• SKF 3205 ATN9
• AUSTRIA

Application

This bearing is suitable for use in various applications such as pumps, industrial gearboxes, compressors, and material handling equipment where rigid axial guidance and high load-carrying capacity are essential.

Country of Origin

Made in Austria.

CO2 Impact

Reusing this bearing saves approximately 0.38 kg of CO2 compared to manufacturing a new one. This choice supports sustainable industrial practices by reducing raw material consumption and energy usage.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What does the 'ATN9' suffix mean for this SKF bearing?

The 'A' indicates a 30-degree contact angle without filling slots. The 'TN9' signifies a snap-type cage made of glass fibre reinforced polyamide 66 (PA66), centered on the balls.

Double row angular contact ball bearings are very rigid and cannot accommodate any significant misalignment between the shaft and housing. Proper alignment during installation is crucial for optimal performance and lifespan.

The appropriate lubrication (grease or oil) depends on the operating conditions, such as speed, temperature, and load. It is essential to consult the machine manufacturer's guidelines or the SKF bearing catalog for specific recommendations to ensure a long service life.
