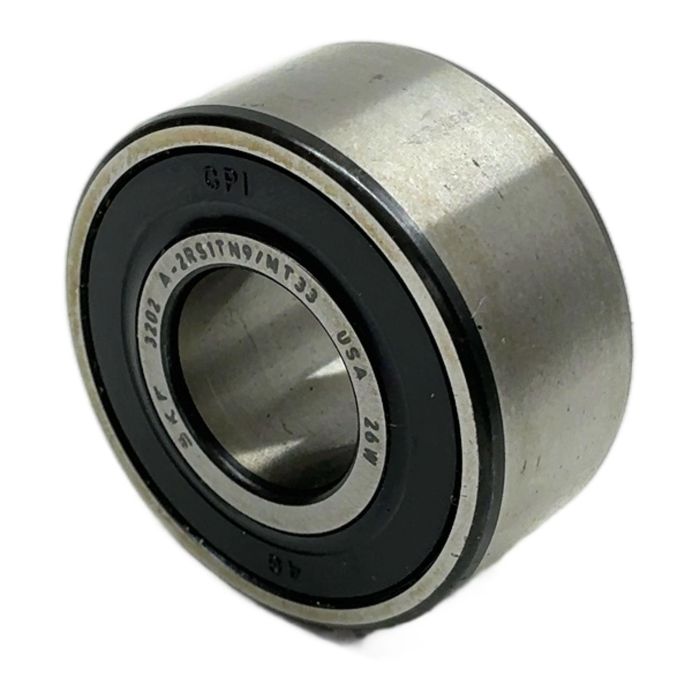

SKF 3202 A-2RS1TN9/MT33 Double Row Angular Contact Ball Bearing

Description

This is a 3202 A-2RS1TN9/MT33 double row angular contact ball bearing from SKF, a leading global manufacturer of bearings and seals. Designed to accommodate both radial and axial loads in both directions, this bearing is a versatile solution for various industrial applications. The 'A' signifies an optimized internal design without filling slots. It comes equipped with contact seals on both sides for protection against contaminants and retention of grease.

Specifications

• Brand: SKF
• Part Number: 3202 A-2RS1TN9/MT33
• Type: Double Row Angular Contact Ball Bearing
• Bore Diameter: 15 mm
• Outside Diameter: 35 mm
• Width: 15.9 mm
• Seals: 2RS1 (Contact seal on both sides, NBR)
• Cage: TN9 (Glass fibre reinforced polyamide 6,6)
• Grease: MT33

Label Info

• Brand: SKF
• Part Number: 3202 A-2RS1TN9/MT33
• Country of Origin: USA

Application

Ideal for use in pumps, compressors, gearboxes, and other machinery where combined loads and rigid guidance of shafts are required.

Country of Origin

This product is proudly made in the USA, as indicated on both the bearing and its original packaging.

CO2 Impact

Choosing this reused bearing over a new one prevents the emission of approximately 0.13 kg of CO2. This saving is equivalent to charging a smartphone more than 15 times, contributing to a more sustainable industrial practice.

Availability

This item is a new-old-stock (NOS) product in its original, albeit worn, packaging. Availability is limited. Order now from PLC2Day for expert support and fast delivery.

FAQ

What does '2RS1' signify in the part number?

The '2RS1' designation indicates that the bearing is fitted with a contact seal made of nitrile butadiene rubber (NBR) on both sides. These seals provide excellent protection against dust, dirt, and moisture, while also retaining the lubricant within the bearing.

What are the benefits of the 'TN9' polyamide cage?

A 'TN9' cage is made from injection-moulded, glass-fibre-reinforced polyamide 6,6. This material offers a great combination of strength and elasticity, has low friction characteristics, and is lightweight, allowing for higher operational speeds compared to traditional steel cages.

Is the MT33 grease suitable for high-temperature applications?

SKF's MT33 grease is a medium-temperature grease with a lithium thickener, suitable for a standard operating range of -30 to +120 deg C. For applications consistently exceeding this range, a different high-temperature grease would be recommended.
