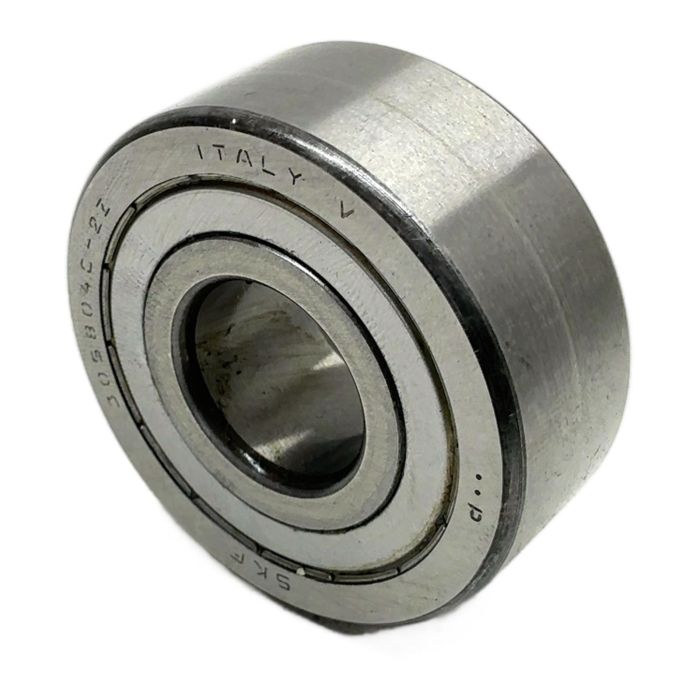

SKF Double Row Angular Contact Ball Bearing 305804C-2Z

Description

This SKF 305804C-2Z is a double-row angular contact ball bearing, engineered for applications requiring robust support for combined radial and axial loads in both directions. Its design provides a high degree of stiffness and is often used in automotive water pumps and other machinery where reliable performance is essential. The bearing is supplied pre-lubricated and features steel shields on both sides for protection against contaminants.

Specifications

• Manufacturer: SKF
• Type Number: 305804C-2Z
• Product Type: Double Row Angular Contact Ball Bearing
• Bore Diameter: 17 mm
• Outer Diameter: 40 mm
• Overall Width: 39 mm
• Sealing: 2Z - Steel shield on both sides

Label Info

• Brand: SKF
• Model: 305804C-2Z
• Made in: Italy

Application

This bearing is commonly used in automotive water pump applications but is also suitable for other industrial machinery that requires rigid bearing arrangements and can accommodate combined loads.

Country of Origin

This product is manufactured in Italy.

CO2 Impact

By purchasing this reused component, you contribute to a circular economy and help avoid 0.76 kg of CO2 emissions associated with the production of a new part.

Availability

This item is a new old stock (NOS) product, in excellent, unused condition but with aged packaging. It is available for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What does the 'C-2Z' suffix in 305804C-2Z signify?

The 'C' often relates to internal design or contact angle modifications specific to SKF. The '-2Z' suffix indicates that the bearing is equipped with a pressed steel shield on both sides, protecting the internal components from larger contaminant particles.

While specifically designed for water pumps, its characteristics as a double-row angular contact bearing make it suitable for other applications requiring support for combined radial and axial loads in both directions, provided the dimensions and load ratings are appropriate.

No, SKF bearings with a -2Z suffix are typically pre-lubricated with grease for their entire service life. They are considered maintenance-free and should not be washed or heated above 120 deg C before mounting.
