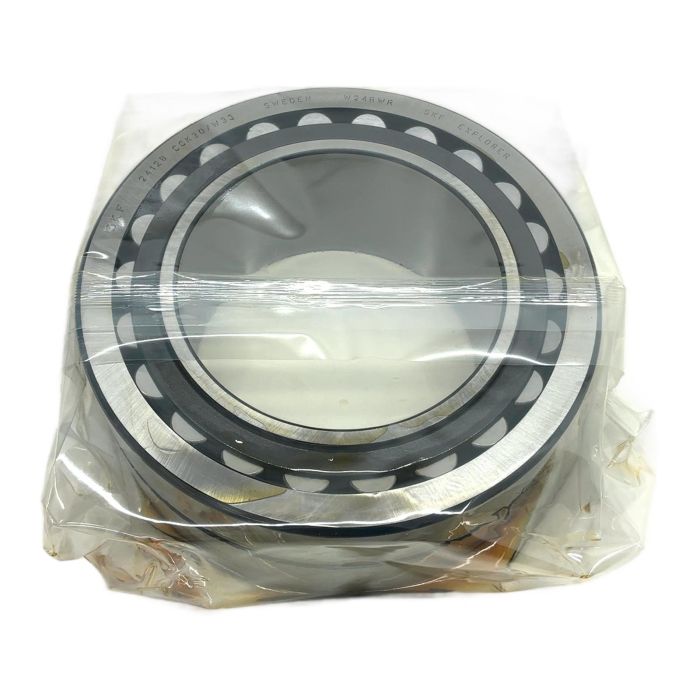

SKF 24128 CCK30/W33 Spherical Roller Bearing

Description

This SKF Explorer series bearing is a high-performance spherical roller bearing designed for demanding industrial applications. The 24128 CCK30/W33 offers superior load-carrying capacity, accommodates misalignment, and ensures a long operational life thanks to its upgraded materials and optimized internal geometry. It is ideal for use in machinery such as conveyors, crushers, and industrial gearboxes.

Specifications

• Manufacturer: SKF
• Part Number: 24128 CCK30/W33
• Type: Spherical Roller Bearing
• Bore Diameter: 140 mm
• Outside Diameter: 210 mm
• Width: 69 mm
• Bore Type: Tapered 1:30 (K30)
• Cage Material: Steel (CC design)
• Lubrication Feature: Annular groove and three lubrication holes (W33)
• Weight: Approx. 8.4 kg

Label Info

• Designation: 24128 CCK30/W33
• Brand: SKF Explorer
• EAN: 7316577016485

Application

Designed for heavy-duty applications where shaft deflection and misalignment are expected. Common uses include mining equipment, construction machinery, pulp and paper processing, and large industrial fans.

Country of Origin

Made in Sweden.

CO2 Impact

Opting for this surplus component prevents the emission of approximately 16.8 kg of CO2, which would have been generated during the manufacturing of a new bearing. This is a sustainable choice for your maintenance needs.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question?
What is the significance of the 'K30' suffix on the SKF 24128 CCK30/W33 bearing?
Answer:
The 'K30' suffix indicates that the bearing has a tapered bore with a taper of 1:30. This design allows for mounting on a tapered shaft journal or using an adapter or withdrawal sleeve on a cylindrical shaft, enabling a secure and precise fit.

Question?
How does the 'CC' designation impact the performance of this bearing?
Answer:
The 'CC' designation refers to an improved internal design featuring two window-type steel cages and symmetrical rollers. This enhances roller guidance, reduces friction, and allows for higher speed ratings compared to older designs, contributing to the bearing's overall performance and longevity.

Question?
Is special lubrication required for a bearing with the 'W33' feature?
Answer:
The 'W33' feature, which is an annular groove and three lubrication holes in the outer ring, does not require a special type of lubricant but facilitates more effective and efficient relubrication. It allows grease or oil to be introduced directly into the load-bearing zone, ensuring optimal lubrication, heat dissipation, and contaminant flushing.
