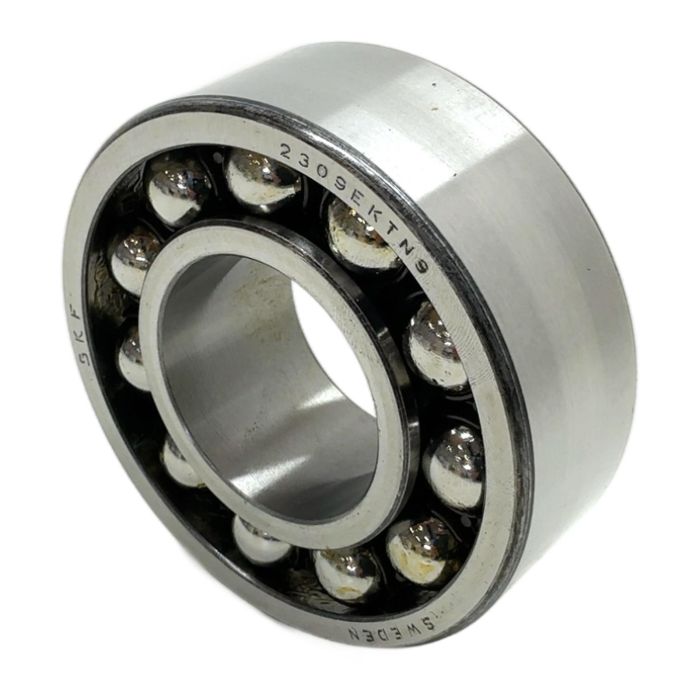

SKF 2309 EKTN9 Self-aligning Ball Bearing

Description

The SKF 2309 EKTN9 is a high-performance self-aligning ball bearing designed for reliability in demanding industrial applications. Its key feature is the ability to accommodate static and dynamic misalignment, thanks to its two rows of balls and a common sphered raceway in the outer ring. This bearing is supplied with a tapered bore for mounting with an adapter sleeve on cylindrical shafts.

Specifications

• Bore Diameter (d): 45 mm
• Outside Diameter (D): 100 mm
• Width (B): 36 mm
• Bore Type: Tapered (1:12)
• Cage Material: Glass fibre reinforced polyamide 6,6 (TN9)
• Number of Rows: 2
• Basic Dynamic Load Rating: 47.5 kN
• Basic Static Load Rating: 17 kN

Label Info

• Brand: SKF
• Model: 2309 EKTN9

Application

This bearing is ideal for use in agricultural machinery, fans and blowers, food processing equipment, and textile machinery, where shaft deflection or mounting inaccuracies are common.

Country of Origin

Made in Sweden.

CO2 Impact

Opting for this pre-owned bearing saves approximately 2.7 kg of CO2 compared to manufacturing a new one, contributing to a more sustainable industrial operation.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The 'K' suffix indicates that the bearing has a tapered bore with a standard taper of 1:12. This allows for mounting on a tapered shaft or using an adapter sleeve. The 'TN9' suffix specifies that the bearing is fitted with a snap-type cage made of glass fibre reinforced polyamide 6,6, which offers good performance at high speeds and moderate temperatures.

Mounting a tapered bore bearing involves driving it up the tapered seat. The correct fit is achieved by controlling either the axial drive-up distance or the reduction in radial internal clearance. Using an adapter sleeve (H series) or a withdrawal sleeve (AH series) is a common method for mounting on cylindrical shafts. Always use proper mounting tools and refer to SKF's guidelines to avoid damaging the bearing.

The SKF 2309 EKTN9 is a self-aligning ball bearing designed to accommodate both static and dynamic angular misalignment between the shaft and housing. Due to its internal geometry with a sphered outer ring raceway, it can typically handle misalignments of several degrees without affecting its performance or lifespan, making it ideal for applications with shaft deflection or initial mounting inaccuracies.
