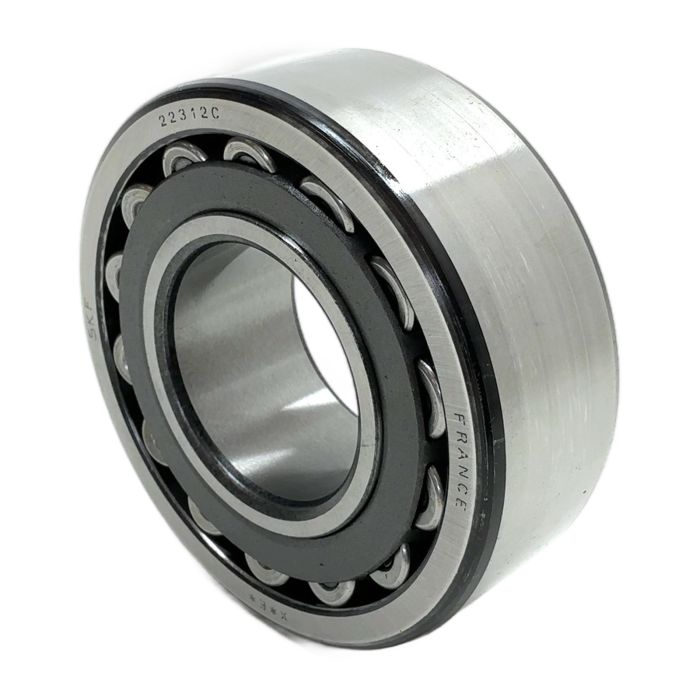

SKF 22312C Spherical Roller Bearing

Description

The SKF 22312C is a robust spherical roller bearing designed for superior performance in demanding industrial applications. It is engineered to handle high radial loads and moderate axial loads in both directions, while also accommodating misalignment. This makes it an ideal choice for machinery where shaft deflection or mounting errors are a concern. This particular item is new-old-stock, offering the quality of an SKF bearing in excellent condition.

Specifications

• Manufacturer: SKF
• Type Number: 22312C
• Bore Diameter (d): 60 mm
• Outside Diameter (D): 130 mm
• Width (B): 46 mm
• Basic Dynamic Load Rating: 351 kN
• Basic Static Load Rating: 405 kN
• Limiting Speed: 5000 r/min
• Cage Material: Steel

Label Info

• Brand: SKF
• Model: 22312C

Application

This bearing is commonly used in heavy industrial equipment such as gearboxes, wind turbines, continuous casting machines, pumps, fans, and mining and construction machinery.

Country of Origin

Made in France.

CO2 Impact

Opting for this component prevents the emission of approximately 5.7 kg of CO2, which would have been generated during the production of a new one. This saving is comparable to driving a car for 28 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the significance of the 'C' suffix in the SKF 22312C designation?

The 'C' suffix indicates an improved symmetrical roller design and a flangeless inner ring with a floating guide ring, which was an early SKF improved design. Modern equivalents often use the 'E' suffix for an optimized internal design for increased load capacity.

Yes, spherical roller bearings like the 22312C are designed to handle very high radial loads and significant axial loads in both directions, making them suitable for demanding applications.

This bearing can be lubricated with either grease or oil. The choice depends on the operating speed, temperature, and load. For most applications, a high-quality lithium complex grease with EP additives is suitable.
