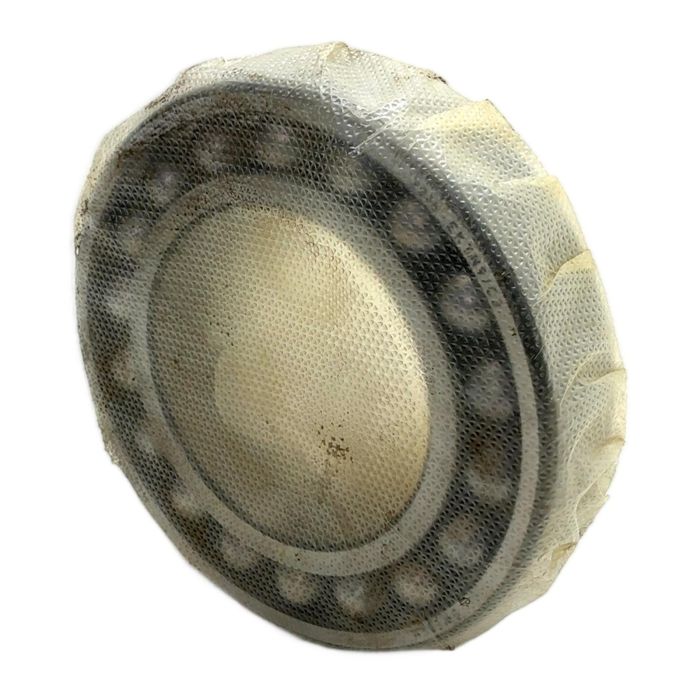

SKF 2216 EKTN9/C3 Self-Aligning Ball Bearing

Description

This is a high-quality self-aligning ball bearing, model 2216 EKTN9/C3, from the world-renowned manufacturer SKF. Designed to accommodate misalignment, this bearing is an excellent choice for applications where shaft deflection or mounting errors are expected. This is a new old stock (NOS) item in its original, albeit worn, packaging, offering premium performance at a competitive price.

Specifications

• Manufacturer: SKF
• Type: 2216 EKTN9/C3
• Product Type: Self-Aligning Ball Bearing
• Bore Diameter (d): 80 mm
• Outside Diameter (D): 140 mm
• Width (B): 33 mm
• Bore Type: Tapered (1:12)
• Cage: Glass fibre reinforced polyamide 6,6 (TN9)
• Internal Clearance: C3 (greater than normal)
• Weight: Approx. 2.05 kg

Application

Ideal for use in a wide range of industrial applications, including agricultural machinery, fans and blowers, food processing equipment, and textile machinery where robust performance and tolerance for misalignment are crucial.

Country of Origin

Made in Sweden.

CO2 Impact

By purchasing this reused part, you are saving approximately 4.1 kg of CO2 emissions compared to a new production. This is equivalent to the CO2 absorbed by a mature tree in several months.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the significance of the 'EKTN9/C3' suffix?

The suffix provides key details: 'EK' signifies a tapered bore (taper 1:12) with an annular groove and lubrication holes in the outer ring. 'TN9' indicates a glass fibre reinforced polyamide 6,6 cage, which is lightweight and allows for high speeds. 'C3' refers to an internal radial clearance that is greater than normal, suitable for applications with tight fits or temperature variations.

A bearing with a tapered bore is mounted either on a tapered shaft journal or on a cylindrical shaft using an adapter sleeve or withdrawal sleeve. The mounting process involves driving the bearing up the tapered seat, which reduces its internal clearance. It is critical to use feeler gauges to measure the clearance reduction to achieve the correct operational fit and prevent premature failure.

The polyamide cage (TN9) offers excellent performance but has temperature limitations. It is generally stable for continuous operation up to 120 deg C (250 deg F). For applications with consistently higher operating temperatures, a bearing with a steel cage (suffix 'M' or no cage suffix) would be a more suitable choice.
