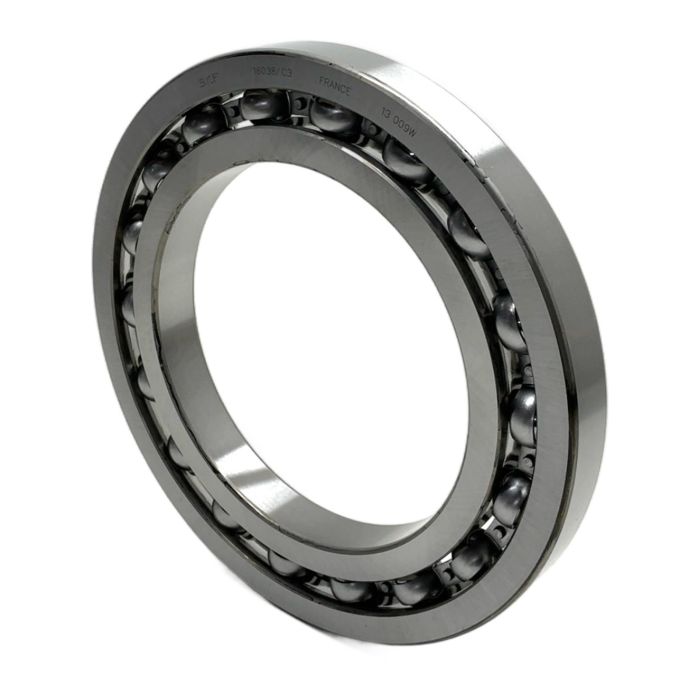

SKF Deep Groove Ball Bearing 190x290x31mm 16038/C3

Description

This is an SKF 16038/C3 single-row deep groove ball bearing, a high-quality component designed for superior performance and durability. As an open bearing, it is intended for oil or grease lubrication. The C3 clearance provides extra internal space to accommodate thermal expansion, making it suitable for applications with high speeds or significant temperature variations. This bearing is manufactured to SKF's stringent quality standards, ensuring reliable operation in various industrial settings.

Specifications

• Manufacturer: SKF
• Type: 16038/C3
• Category: Single-Row Deep Groove Ball Bearing
• Bore Diameter (d): 190 mm
• Outer Diameter (D): 290 mm
• Width (B): 31 mm
• Internal Clearance: C3
• Design: Open (no seals or shields)

Label Info

• Brand: SKF
• Model: 16038/C3
• EAN: 731657661452

Application

Ideal for use in a wide array of industrial machinery including electric motors, pumps, gearboxes, fans, and material handling equipment where high rotational speeds and reliability are paramount.

Country of Origin

This bearing is made in France.

CO2 Impact

By purchasing this surplus bearing, you are avoiding the production of a new one, saving approximately 11.4 kg of CO2 emissions. This is a sustainable choice for your maintenance needs.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What does the 'C3' suffix mean for the SKF 16038/C3 bearing?

The C3 suffix indicates that the bearing has a radial internal clearance that is greater than 'Normal'. This is often required in applications with high speeds, temperature gradients, or where a press fit is used on both rings, as it compensates for thermal expansion and fitting effects.

Yes, deep groove ball bearings like the 16038/C3 are designed to accommodate both radial and axial loads in both directions. Their deep raceway grooves allow them to sustain moderate axial loads even at high speeds.

As an open bearing, the 16038/C3 must be lubricated upon installation. The choice between grease and oil depends on the operating speed and temperature. For most applications, a high-quality lithium-based grease is suitable. Ensure the bearing is filled to the appropriate level (typically 30-50 percent of free space) to avoid overheating.
