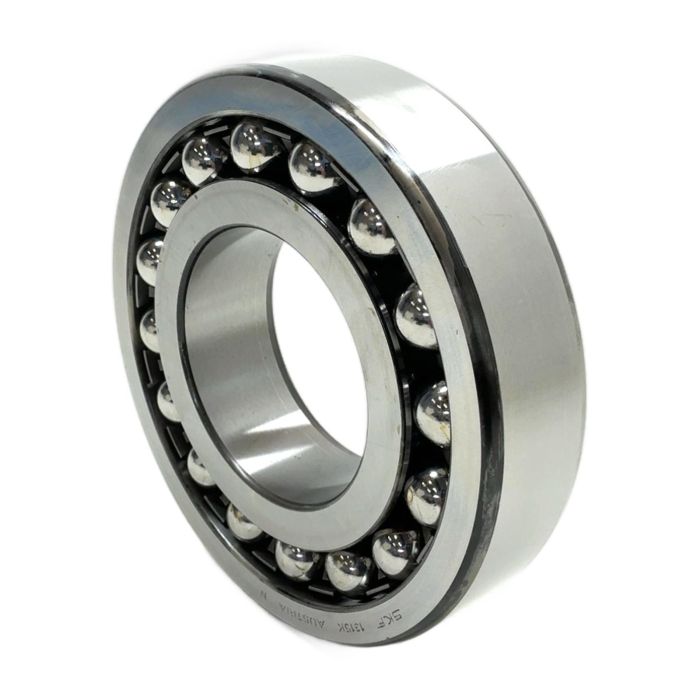

SKF 1315 K Self-Aligning Ball Bearing

Description

The SKF 1315 K is a high-performance self-aligning ball bearing designed to handle shaft deflection and misalignment between the shaft and housing. Its two rows of balls and a common sphered raceway in the outer ring allow it to operate smoothly even under difficult conditions. The 'K' designation indicates a tapered bore (1:12), which facilitates mounting on tapered shafts or on cylindrical shafts using an adapter sleeve. Manufactured in Austria, this bearing is a testament to SKF's quality and reliability. Order now from PLC2Day for expert support and fast delivery.

Specifications

• Manufacturer: SKF
• Model: 1315 K
• Type: Self-Aligning Ball Bearing
• Bore Diameter (d): 75 mm
• Outside Diameter (D): 160 mm
• Width (B): 37 mm
• Bore Type: Tapered 1:12

Label Info

• Brand: SKF
• Part Number: 1315 K
• Made in: Austria

Application

This bearing is suitable for a wide range of industrial applications, including agricultural machinery, conveyor systems, fans, and other equipment where shaft misalignment is a concern.

Country of Origin

Austria

CO2 Impact

Opting for this pre-owned component avoids approximately 8.1 kg of CO2 emissions associated with the production of a new one.

Availability

This item is in stock and ready for immediate dispatch.

FAQ

The 'K' suffix indicates that the bearing has a tapered bore with a standard taper of 1:12. This allows the bearing to be mounted on a cylindrical shaft using an adapter sleeve or on a tapered shaft.

Yes, the SKF 1315 K is designed to handle both static and dynamic angular misalignment between the shaft and housing, thanks to its sphered outer ring raceway. This makes it ideal for applications where shaft deflection or mounting errors are expected.

This bearing is typically open and requires external lubrication. The choice between grease and oil lubrication depends on the operating speed, temperature, and load. For most general applications, a high-quality lithium-based grease is suitable. Always consult the machine's maintenance manual for specific recommendations.
