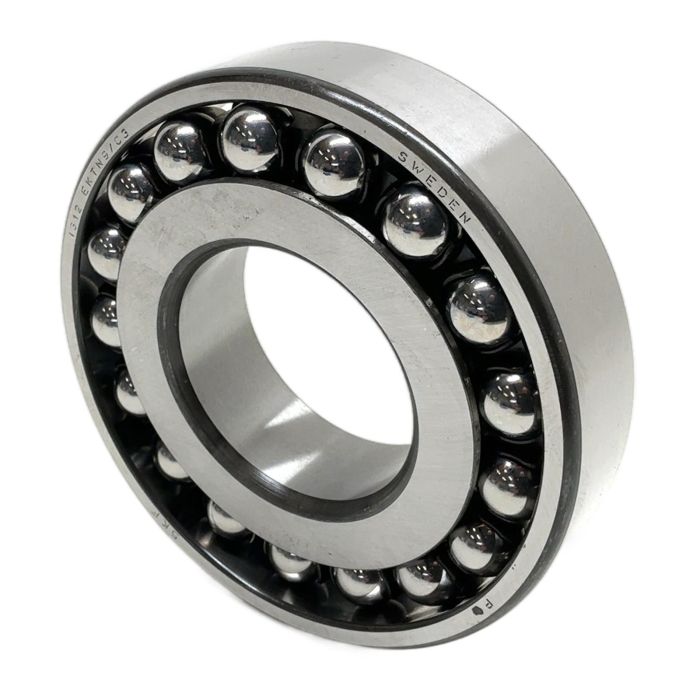

SKF 1312 EKTN9/C3 Self-aligning Ball Bearing

Description

This SKF 1312 EKTN9/C3 is a high-performance self-aligning ball bearing, designed for reliability in demanding industrial applications. Its ability to accommodate static and dynamic misalignment makes it exceptionally versatile. The bearing features two rows of balls, a common sphered raceway in the outer ring and a tapered bore for mounting on an adapter sleeve or tapered shaft.

Specifications

• Manufacturer: SKF
• Part Number: 1312 EKTN9/C3
• Bore Diameter (d): 60 mm
• Outside Diameter (D): 130 mm
• Width (B): 31 mm
• Bore Type: Tapered (1:12)
• Internal Clearance: C3 (greater than normal)
• Cage Material: Glass fibre reinforced polyamide 6,6 (TN9)

Label Info

• Brand: SKF
• Model: 1312 EKTN9/C3

Application

Ideal for use in applications such as agricultural machinery, ventilation systems, material handling equipment, and general industrial machinery where shaft deflection or mounting inaccuracies can occur.

Country of Origin

This product is proudly made in Sweden.

CO2 Impact

By purchasing this reused bearing, you are saving approximately 4.2 kg of CO2, which is equivalent to the emissions from driving a standard car for 21 km.

Availability

This item is new old stock (NOS) and is available for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The 'K' suffix indicates that the bearing has a tapered bore with a standard taper of 1:12. This design allows for easy mounting and dismounting using an adapter or withdrawal sleeve on a cylindrical shaft.

C3 denotes a radial internal clearance that is greater than normal. This is crucial in applications where there are temperature differences between the inner and outer rings, or where a tight fit is required, preventing the bearing from seizing during operation.

A bearing with a tapered bore should be driven up the tapered seat of the shaft or adapter sleeve. The correct fit is achieved by measuring the reduction in radial internal clearance. This ensures the bearing is mounted securely without being too tight, which could lead to premature failure.
