Siemens SIMATIC S5-101U Expansion Module

Description

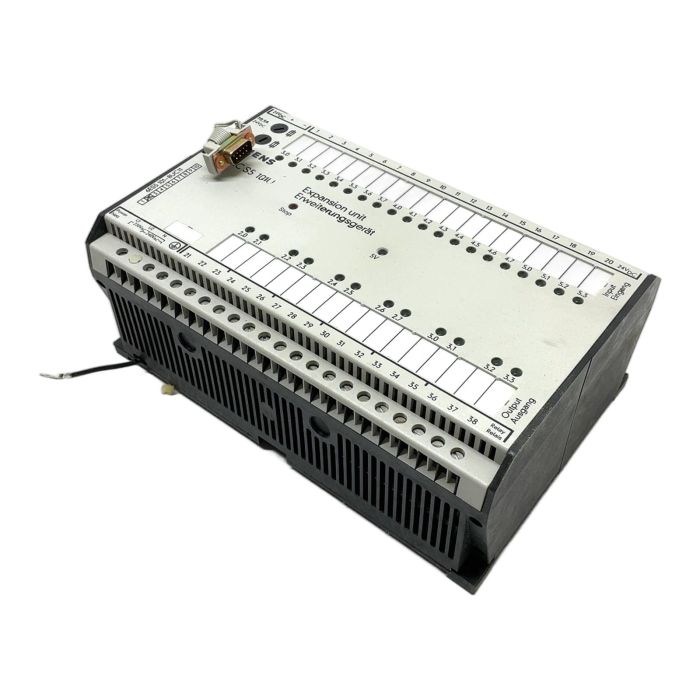

This is the 6ES5 101-8UC11, an expansion unit for the Siemens SIMATIC S5-101U series of programmable logic controllers. It is a vital component for maintaining or expanding legacy automation systems built on the robust and reliable S5 platform. This module provides additional digital I/O capabilities, allowing for more complex control tasks.

Specifications

• Manufacturer: Siemens
• Series: SIMATIC S5
• Model: S5-101U
• Part Number (MLFB): 6ES5 101-8UC11
• Power Supply: 220/240V AC
• Digital Inputs: 20
• Digital Outputs: 12 (Relay)

Label Info

• MLFB: 6ES5 101-8UC11
• Input: 20E / 220V AC
• Output: 12O/A Relay Outputs B300 R300

Application

Ideal for extending the I/O capacity of existing SIMATIC S5-101U controllers in manufacturing plants, process control systems, and automated machinery. A perfect spare part for critical systems to minimize downtime.

Country of Origin

Made in Germany.

CO2 Impact

Opting for this pre-owned expansion module instead of a new replacement avoids the emission of approximately 48.0 kg of CO2, a saving equivalent to charging a smartphone over 5,700 times.

Availability

This product is an obsolete but crucial component for legacy system maintenance. Availability is limited. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question?

Can this S5-101U expansion unit be used as a standalone PLC?

Answer:
No, the 6ES5 101-8UC11 is specifically an expansion unit. It requires a compatible SIMATIC S5 CPU, like the S5-101U CPU, to function. It connects via a ribbon cable to the main processor, which handles the program logic.

What programming software and cable are needed for a system using this module?

Answer:
A system incorporating this module would be programmed using Siemens STEP 5 software. The programming connection is typically made to the main CPU unit, not this expansion module, using a specific TTY or RS-232 programming cable (e.g., 6ES5 734-1BD20).

Are the relay outputs on this module suitable for switching high-power inductive loads?

Answer:
The relay outputs (Type B300 R300) are designed for general-purpose switching. While they can handle some inductive loads, it is crucial to check the specific current and voltage ratings in the official Siemens S5 manual. For high-power or frequently switched inductive loads like large motors or solenoids, it is highly recommended to use external interposing relays or contactors to protect the PLC's internal relays.
