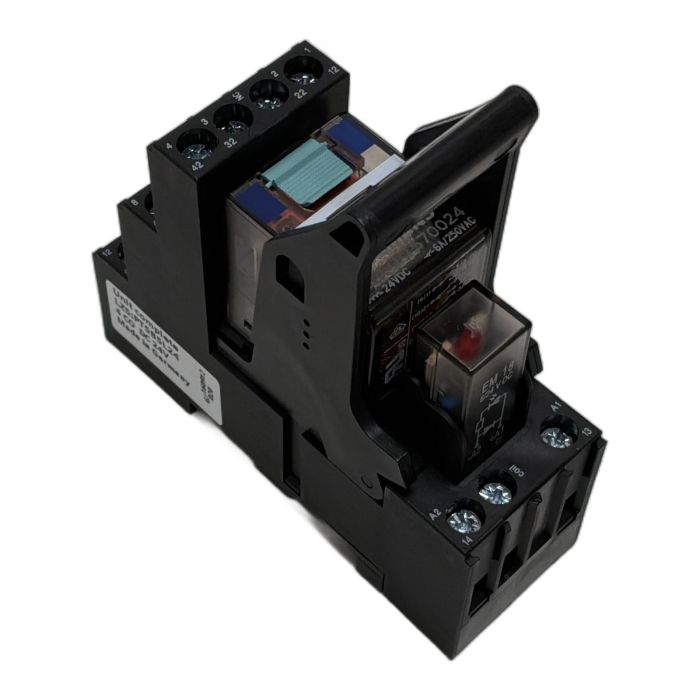

Siemens LZS:PT5B5L24 Complete Plug-In Relay Unit

Product Description

This Siemens LZS:PT5B5L24 plug-in relay unit is designed for industrial automation and control cabinet applications. It includes a 4-contact relay module and LZS:PT78742 socket base, offering reliable performance for various loads.

Product Specifications

Manufacturer: Siemens

Type (Complete Unit): LZS:PT5B5L24

Socket Type: LZS:PT78742

Coil Voltage: 24V DC

Contact Configuration: 4 CO (4PDT - Four Pole Double Throw)

Contact Rating: 6A / 250V AC

Termination: Screw Terminals

Mounting: DIN Rail

Product Label Info

Model Code / Product Markings: LZS:PT5B5L24 + PT78742

Application

Ideal for industrial automation and control cabinet applications.

Country of Origin

This product is manufactured in Germany.

Method of Application

Best practice is to mount on a DIN rail for secure installation.

Safety Instructions

Ensure proper wiring and adhere to recommended voltage requirements.

Availability

Order now from PLC2Day, items in stock and ready for fast worldwide delivery.

Need urgent and express delivery, sourcing, or repairs? Contact us now.

Documentation

• Official datasheet or product page Siemens

Resources

Additional resources and manuals are available upon request. Contact us for details.

Internal & External Links

• All products from Siemens
• Explore similar products in Electrical Power Transmission

Frequently Asked Questions

What is the Siemens LZS:PT5B5L24 used for?

This part is typically used in industrial automation settings, such as control cabinets. It provides reliable switching options for various loads.

What are the key advantages of Siemens LZS:PT5B5L24?

It offers flexible switching capabilities with its 4 CO contacts and can handle different load requirements effectively.

Is LZS:PT5B5L24 compatible with my system?

If you're using Siemens control systems, especially for 24V DC circuits, this model will likely be compatible. Contact us to verify.

Alternatives to LZS:PT5B5L24

If you're looking for a similar part, consider exploring other Siemens relay units with compatible specifications.

Can I sell my surplus stock to PLC2DAY?

Yes, PLC2DAY accepts surplus stock and offers tailored solutions for surplus recovery and resale agreements. Contact us for more information.

Need Help?

Call us at +31(0)165 20 11 80 or get in touch online.
