Siemens SINAMICS G120 Power Module 1.5kW 6SL3210-1PB17-4AL0

Description

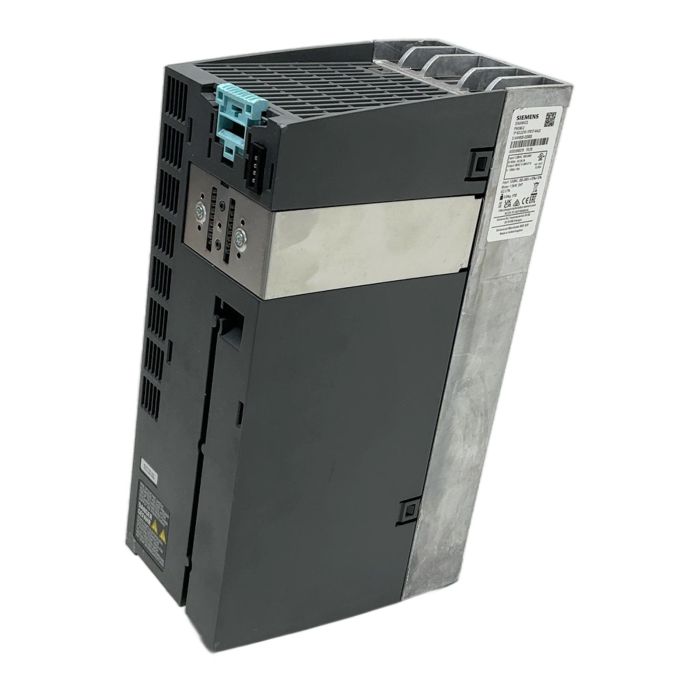

The Siemens 6SL3210-1PB17-4AL0 is a PM240-2 Power Module from the SINAMICS G120 family. This module is designed for motion control applications, providing 1.5 kW of power. It operates on a 200-240V AC input and features an integrated braking chopper for dynamic load management. As an unfiltered unit, it is suitable for environments where specific EMC regulations are met through other means or are not required. It must be paired with a compatible SINAMICS Control Unit for operation.

Specifications

• Manufacturer: Siemens
• Product Line: SINAMICS G120
• Module Type: PM240-2 Power Module
• Model: 6SL3210-1PB17-4AL0
• Input Voltage: 1/3-phase 200-240V AC, 47-63Hz
• Input Current: 18.1A (1-phase) / 9.7A (3-phase)
• Output Voltage: 3-phase 0-Input V AC
• Output Current: 7.4 A
• Power Rating (High Overload): 1.5 kW / 2 HP
• Protection Rating: IP20
• Features: Integrated Braking Chopper, Unfiltered

Label Info

• Part Number: 1P 6SL3210-1PB17-4AL0
• Serial Number: S XAN920-023800
• A&D Number: A5E03945219
• Firmware Status: FS:05

Application

This power module is ideal for a variety of industrial applications including conveyors, pumps, fans, compressors, and general machinery requiring precise motor speed control. Its modular design allows for flexible integration into complex automation systems.

Country of Origin

Made in the United Kingdom.

CO2 Impact

Opting for this reused component prevents the emission of approximately 121.6 kg of CO2, which would have been generated during the production of a new one. This saving is comparable to the emissions from driving a standard car for over 600 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question?
What Control Unit is compatible with this PM240-2 Power Module?

This PM240-2 (6SL3210-1PB17-4AL0) is compatible with various SINAMICS G120 Control Units, such as the CU240E-2, CU240B-2, or CU250S-2 series, depending on the required communication protocol (e.g., PROFIBUS, PROFINET, CANopen) and safety functions.

No, the part number 6SL3210-1PB17-4AL0 designates an unfiltered Power Module. For applications requiring EMC compliance to certain standards, an external line filter must be installed separately.

High Overload (HO) is for applications with high starting torque, like conveyors or hoists, allowing 150% overload for 57 seconds. Low Overload (LO) is for applications with quadratic torque characteristics like pumps and fans, allowing 110% overload for 57 seconds. This module is rated for 1.5 kW in HO mode.
