Siemens SIMATIC NET IE FC RJ45 Plug 180 - 6GK1901-1BB10-2AA0

Description

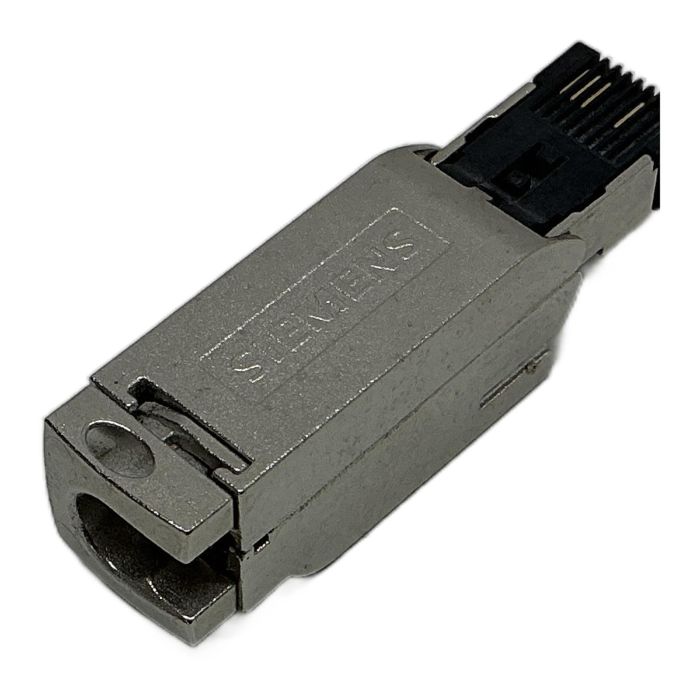

This is the Siemens 6GK1901-1BB10-2AA0, an Industrial Ethernet FastConnect RJ45 Plug with a 180-degree straight cable outlet. It's designed for seamless on-site assembly for IE FC 2x2 standard cables. The rugged metal housing ensures high interference immunity and mechanical robustness, making it perfect for PROFINET and other Industrial Ethernet applications.

Specifications

• Product Type: RJ45 Plug Connector
• Model: IE FC RJ45 Plug 180
• Protocol: Industrial Ethernet / PROFINET
• Data Rate: 10/100 Mbit/s
• Connection Method: Insulation-displacement (FastConnect)
• Cable Outlet: 180 degrees (straight)
• Enclosure: Metal

Label Info

• Manufacturer: Siemens
• Part Number: 6GK1901-1BB10-2AA0
• EAN: 4019169403931
• Serial Number: S JXQHW38000000

Application

Ideal for connecting terminal devices such as SIMATIC HMI panels, S7 PLCs, or SCALANCE switches within industrial control cabinets and machine networks.

Country of Origin

Germany

CO2 Impact

By choosing this pre-owned component, you are contributing to the circular economy and avoiding 1.4 kg of CO2 emissions, which is comparable to driving a car for 7 km.

Availability

This item is in stock and ready for immediate dispatch. We offer various shipping options to meet your project deadlines. Order now from PLC2Day for expert support and fast delivery.

FAQ

This connector is designed for Siemens Industrial Ethernet FastConnect (IE FC) 2x2 cables (4-wire, AWG22) and standard CAT5e installation cables.

Yes, for optimal and fast assembly, the Siemens IE FC Stripping Tool (6GK1901-1GA00) is recommended to prepare the cable correctly before termination in the connector.

No, this specific connector is rated for 10/100 Mbit/s (Fast Ethernet). For Gigabit applications, you would need an 8-wire capable connector like the IE FC RJ45 Plug PRO (e.g., 6GK1901-1BB11-2AA0).
