Siemens SIMATIC NET PROFINET Connector

Description

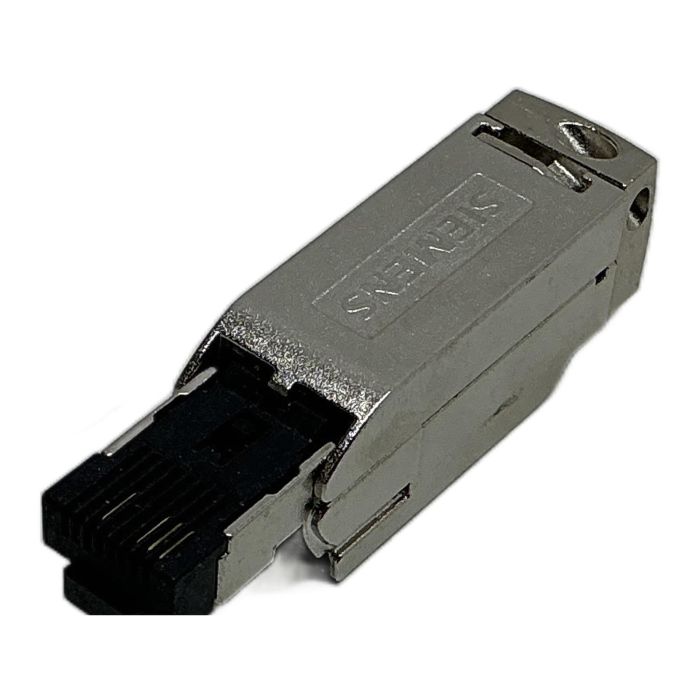

The Siemens 6GK1901-1BB10-2AA0 is an Industrial Ethernet FastConnect (IE FC) RJ45 plug with a 180-degree straight cable outlet. Engineered for reliability in industrial settings, it features a rugged metal housing that provides excellent EMC shielding and strain relief. The FastConnect system allows for rapid and error-free on-site assembly of 4-wire twisted pair cables (2x2) without the need for specialized tools, making it a go-to solution for PROFINET applications.

Specifications

• Manufacturer: Siemens
• Part Number: 6GK1901-1BB10-2AA0
• Product Type: IE FC RJ45 Plug 180
• Network Protocol: PROFINET
• Transfer Rate: 10/100 Mbit/s
• Number of connections: 1
• Connection Type: RJ45
• Cable Outlet: 180 deg (straight)
• Housing Material: Metal
• Protection Class: IP20

Label Info

• FS (Functional State): 03
• File-No.: E252546

Application

This connector is suitable for creating reliable network connections in industrial automation, machinery, and plant engineering where PROFINET is used. Its robust design is ideal for environments with high electromagnetic interference.

Country of Origin

Made in Poland.

CO2 Impact

By purchasing this reused component, you are helping to avoid the emission of approximately 1.6 kg of CO2, which would be generated in the production of a new unit. This saving is comparable to the emissions from a car driving 8 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The FastConnect system uses insulation-displacement connection (IDC) technology. This means you don't need to strip the individual wires before termination. You simply place the wires in the color-coded guides and close the housing, which significantly speeds up installation and reduces potential wiring errors.

This connector is designed for Siemens Industrial Ethernet FC TP cables, specifically the 2x2 type (4-core, twisted pair) for PROFINET applications. It can accommodate solid and stranded conductors with diameters specified in the Siemens documentation.

The full metal housing provides excellent electromagnetic compatibility (EMC) shielding, protecting the data transmission from interference caused by nearby motors, drives, and power lines. This is crucial for maintaining network stability in industrial environments.
