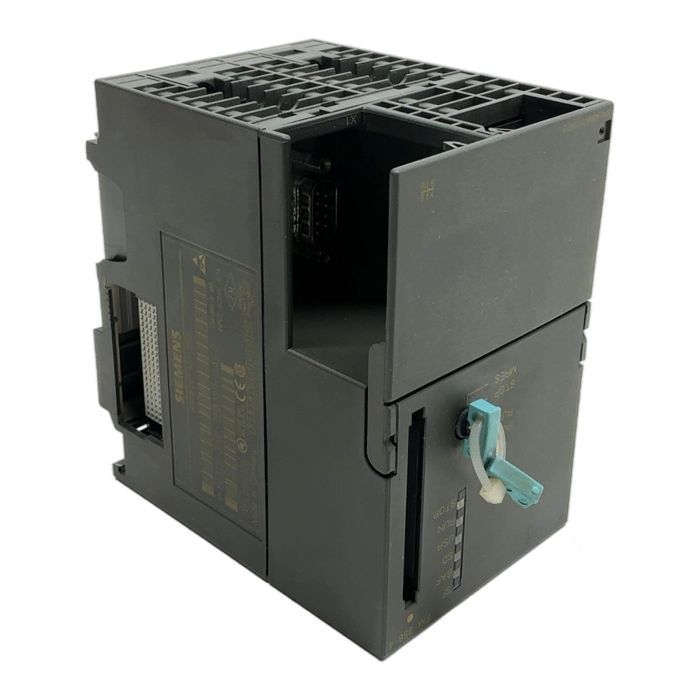

Siemens SIMATIC S7-300 4-Channel Positioning Module 6ES7356-4BM00-0AE0

Description

The Siemens 6ES7356-4BM00-0AE0 is a high-performance FM 356-4 function module for the SIMATIC S7-300 controller family. It is specifically designed for sophisticated positioning tasks, capable of controlling up to four axes with rapid/creep speed drives. This module is essential for applications requiring precise motion control in automated environments. As an obsolete but widely used component, it is a crucial spare part for extending the life of existing S7-300 systems.

Specifications

• Manufacturer: Siemens
• Product Line: SIMATIC S7-300
• Module Type: Function Module FM 356-4
• Function: 4-Channel Positioning
• Input Voltage: 24V DC
• Current Draw: 0.7A
• Communication: Integrates via S7-300 backplane bus

Label Info

• Part Number (MLFB): 6ES7 356-4BM00-0AE0
• Serial Number: S VPL2302128

Application

Ideal for applications such as material handling, packaging machinery, assembly lines, and any process that requires precise control of motor position and speed within a Siemens S7-300 based architecture.

Country of Origin

Made in Germany.

CO2 Impact

Choosing this pre-owned module over a new one saves approximately 14 kg of CO2, contributing to a more sustainable industrial operation.

Availability

This product is an obsolete item but is available from our stock as a reliable, tested spare part. Order now from PLC2Day for expert support and fast delivery.

FAQ

What software is required to program the FM 356-4 module?

The FM 356-4 is configured using the "FM 356-4 configuration package" within the SIMATIC STEP 7 software environment (Classic, not TIA Portal). Ensure you have the correct hardware support package installed.

It is compatible with most S7-300 CPUs, but it is crucial to check the technical specifications of your specific CPU for compatibility, especially regarding the backplane bus and performance capabilities. Older CPUs may have limitations.

Yes, the module requires a 24V DC external power supply for its electronics, as indicated on the label. The power is supplied via the terminals on the module itself, not just from the S7-300 backplane bus.
