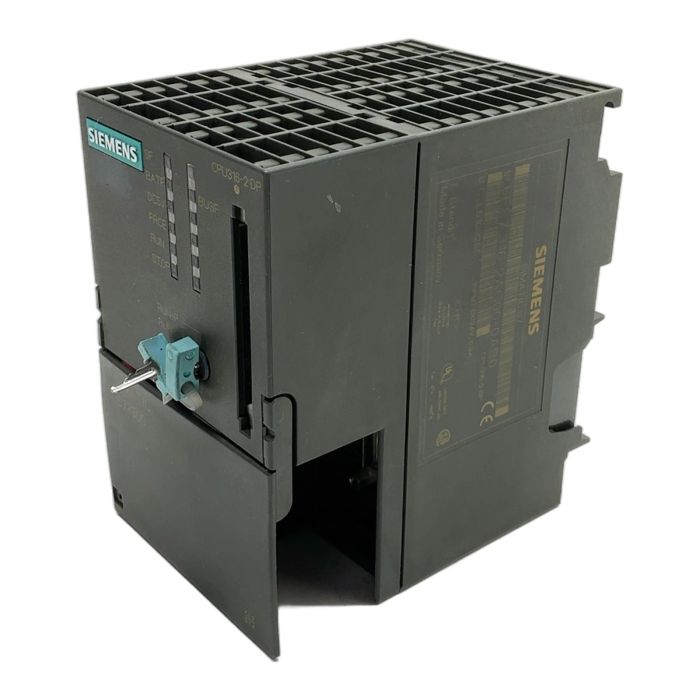

Siemens SIMATIC S7-300 CPU 316-2 DP Controller

Description

The Siemens 6ES7316-2AG00-0AB0 is a powerful Central Processing Unit from the renowned SIMATIC S7-300 series. It is engineered for demanding automation tasks within industrial environments, providing robust performance and reliability. With its 512 KB work memory and integrated PROFIBUS DP interfaces, it serves as a central controller for complex machinery and plant control systems. This module is an excellent choice for maintaining or upgrading existing S7-300 applications.

Specifications

• Manufacturer: Siemens
• Series: SIMATIC S7-300
• Model: CPU 316-2 DP
• Part Number: 6ES7316-2AG00-0AB0
• Power Supply: 24V DC
• Input Current: 0.9A
• Work Memory: 512 Kbytes
• Interfaces: 1x MPI/DP, 1x DP (master/slave)
• Programming: Requires Micro Memory Card (MMC, not included)

Label Info

• Order No.: 1P 6ES7 316-2AG00-0ABO
• Serial No.: S C-L5109265
• Hardware Version (E-Stand): 1

Application

This PLC CPU is commonly used in manufacturing, process control, packaging machinery, and material handling systems where reliable and fast logic processing is required. Its PROFIBUS DP connectivity makes it ideal for controlling distributed I/O, drives, and HMI panels.

Country of Origin

Made in Germany.

CO2 Impact

By purchasing this pre-owned module, you help avoid the emission of approximately 24 kg of CO2. This saving is comparable to the emissions from driving a car for 120 kilometers, contributing to a more sustainable industrial sector.

Availability

This product line is in its phase-out period from the manufacturer, making tested, used components a critical resource for maintaining operational systems. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question?

What size Micro Memory Card (MMC) is compatible with the CPU 316-2 DP (6ES7316-2AG00-0AB0)?

This CPU requires a Siemens Micro Memory Card (MMC) to operate. It supports MMC sizes up to 8 MB. It is crucial to use a genuine Siemens MMC, as standard SD cards are not compatible.

Can this CPU be programmed with TIA Portal, or does it require STEP 7 V5.x?

The SIMATIC S7-300 CPU 316-2 DP can be programmed using both classic SIMATIC STEP 7 V5.5 or later, and Siemens TIA Portal (e.g., V13, V14, V15). For TIA Portal, ensure you have the appropriate license and hardware support package installed.

What is the function of the mode selector switch (RUN-P/RUN/STOP)?

The switch controls the operating state of the CPU. 'STOP' halts program execution. 'RUN' executes the user program. 'RUN-P' allows for program changes while the CPU is running, though not all operations are permitted. The switch also has a position for Memory Reset (MRES).

Last Update: Friday, March 13, 2026
