Siemens SIMATIC ET 200M PROFIBUS DP Interface Module

Description

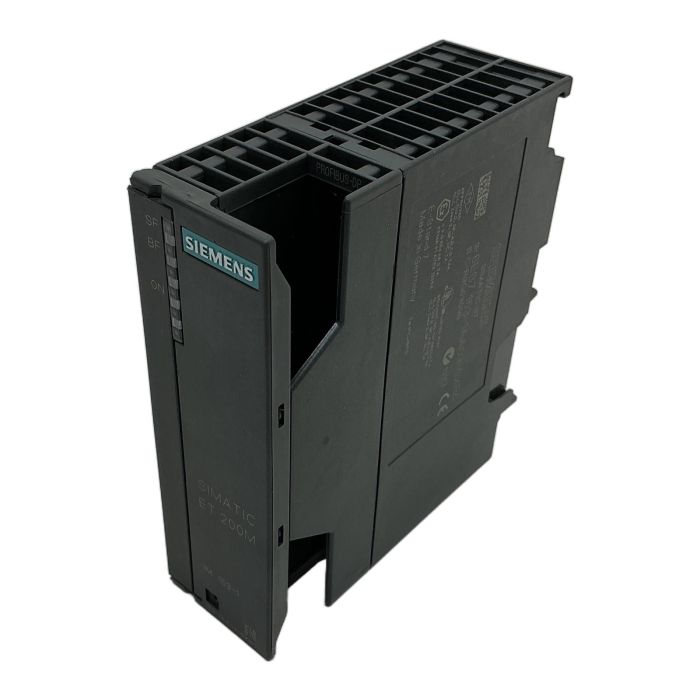

The 6ES7153-1AA03-0XB0 is an IM 153-1 interface module for the Siemens SIMATIC ET 200M distributed I/O system. It serves as a crucial link, connecting a rack of I/O modules to a PROFIBUS DP network at speeds up to 12 Mbit/s. This module is renowned for its reliability and is a foundational component in many legacy and existing automation systems. It supports up to 8 S7-300 I/O modules.

Specifications

• Manufacturer: Siemens
• Product Series: SIMATIC ET 200M
• Model: IM 153-1
• Part Number: 6ES7153-1AA03-0XB0
• Input Voltage: 24V DC
• Communication: PROFIBUS DP slave
• Transmission Rate: 9.6 kbit/s to 12 Mbit/s
• Number of I/O Modules: Max. 8
• Operating Temperature: 0 to 60 deg C

Label Info

• E-Stand: 7
• Serial Number: S C-R9G03096
• ATEX Certification: KEMA 01 ATEX 1238X
• UL Listed: 3DA1 for HAZ.LOC.

Application

This interface module is ideal for expanding PLC systems in manufacturing, process control, and material handling applications. It is commonly used with SIMATIC S7-300 and S7-400 series PLCs to decentralize I/O, reducing wiring complexity and cost.

Country of Origin

Made in Germany.

CO2 Impact

Choosing this pre-owned module over a new one avoids approximately 10.0 kg of CO2 emissions, contributing to a more sustainable operation.

Availability

This item is an obsolete but readily available spare part. Order now from PLC2Day for expert support and fast delivery.

FAQ

This module supports all standard PROFIBUS DP data rates from 9.6 kbit/s up to 12 Mbit/s. The rate is typically detected automatically based on the network configuration.

Yes, the IM 153-1 (6ES7153-1AA03-0XB0) is capable of being used in redundant PROFIBUS DP configurations, making it suitable for high-availability systems like those controlled by an S7-400H PLC.

'E-Stand' or 'Engineering Stand' refers to the functional and hardware version of the module. Version 7 is a specific revision with its own set of features and firmware compatibility, which can be important when replacing a module in an existing system to ensure correct operation.
